Bookshelf Speaker |
|
|
|
| |

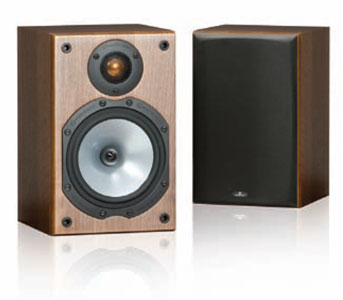

MONITOR REFERENCE BOOKSHELF SPEAKER
The diminutive MR 1 allows
you to enjoy high quality sound in the smallest spaces.
You'll fall in love with its agile, rhythmic performance
and its liberating versatility. While retaining the
compact dimensions of its BR1 predecessor, this reference
compact monitor delivers superior bandwidth and improved
linearity, so you hear more music with greater definition
than ever before. The two-way MR1 utilises a single
5.5' MMP® II bass driver and 1" C-CAM® tweeter within
a system optimised for genuine fidelity wherever you
place it in the home.
|
| |
|
FEATURE:
|
| |
|
Model
|
Monitor Reference
1
|
|
SPECIFICATIONS
|
|
Frequency Response |
55 Hz ~ 30 KHz
|
| Sensitivity
(1 W @ 1M) |
88
dB |
|
Nominal Impedance |
6 Ω |
| Power
Handling Single (RMS) |
70
W |
|
Recommended Amp. Req. |
15~70 W |
| Bass
Alignment |
Bass
reflex-Rear ported |
|
Drive Unit Complement |
1 x 5.5" MMP® II Mid
Range |
| |
1
x 1" gold dome C-CAM® tweeter |
|
External Dimensions
(HxWxD) |
260 x 165 x 180 mm |
| Weight |
3.5
Kg |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
