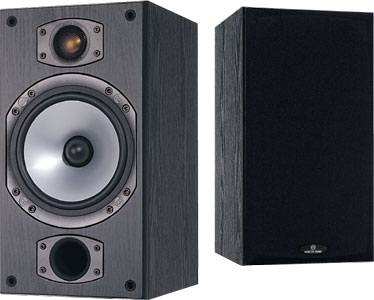

MONITOR REFERENCE BOOKSHELF SPEAKER
The M2, is 2-way design
intended for stand or shelf mounting. Its 6.5-inch MMP®II
bass-mid driver is unique to it and designed to deliver
punchy, powerful bass and transparent mid-range right
up to the cross-over point with the tweeter at 2.8KHz.
Special ‘figure eight’ internal bracing gives very rigid
construction, helping the M2 to achieve a clean, un-boxy
sound reminiscent of high end speakers using very heavy
or high-tech construction techniques. The front-ported
design makes siting less critical than with many rivals
speakers. The Monitor M2 can be placed close to a rear
wall without the bass becoming boomy - a big advantage
in smaller rooms.
|
| |
|
FEATURE:
|
| |
|
Model
|
Monitor Series 2
|
|
SPECIFICATIONS
|
|
Frequency Response |
42 Hz ~ 22 KHz
|
| Sensitivity (1
W @ 1M) |
90 dB |
|
Nominal Impedance |
6 Ω |
| Power Handling
Single (RMS) |
100 W |
|
Bass Alignment |
Front ported bass
reflex |
| Drive Unit Complement
|
1 x 165mm (6 1/2")
MMP®II Mid Bass
1 x 25 mm (1") C-CAM® gold dome tweeter |
External Dimensions
(H x W x D) mm Inches |
350 x 185 x 265
(13 3/4 x 7 5/16 x 10 1/16) |
| Weight (each)
KG (LBS) |
5.25 (11.6) |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
