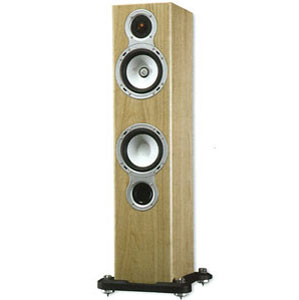

GOLD SIGNATURE FLOOR STAND SPEAKER
The massively accomplished
GR 20 was a hard act to follow, but its successor, the
GS 20, pulls decisively ahead in all respects, combining
gorgeous aesthetics, sublime sonics and superlative
build quality. Its two-and-a-half way, three driver
configuration is built around a unique dual cavity cabinet
design, in which 6½-inch RST® 2 Bass and bass-mid drivers
work into separate enclosures, tuned to different frequencies
and impedances. This provides improved power handling
and delivers faster, deeper, more dynamic bass and greater
transparency through the crucial mid-range. Above that,
the gold C-CAM® tweeter ensures a smooth, detailed sound
all the way up to 43 KHz, exploiting the full potential
of the latest wide-bandwidth digital formats.
|
| |
|
FEATURE:
|
| |
|
Model
|
Gold Signature 20
|
|
SPECIFICATIONS
|
|
Frequency Response |
32 Hz ~ 43 KHz |
| Sensitivity |
89
dB (-6 dB 1W@1M) |
|
Nominal Impedance |
6 Ω |
| Maximum SPL (Per
pair in room)dBA |
111 |
|
Power Handling (RMS) |
150 W |
| Recommended Amplifier
Power Output. Watts RMS |
40
~ 150 |
|
Bass Alignment |
Dual Chamber Bass
Reflex with Differentail Tuning (Hive™ 2 Technology) |
| Tweeter Crossover
Frequency KHz |
2.7
KHz |
|
Bass Crossover Frequency |
250 Hz |
| Drive Unit Complement |
1
x 6 ½ RST® 2 Bass Driver
1 x 6 ½ RST®2 Bass/Mid Driver
1 x 1" Gold Dome C-CAM ® Tweeter |
|
External Dimensions-Excluding
Plinth (HxWxD) mm(inch) |
924 x 206 x 208
(36 3/8 x 8 1/8 x 11) |
| External Dimensions-Including
Plint (HxWxD) mm (inch) |
934
x 322 x 363
(36 3/4 x 12 11/16 x 14 5/16 ) |
|
Weight Kg (lb) |
20.6 (45.3) |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
