Active Subwoofer |
|
|
|
| |
BRONZE REFERENCE SUBWOOFER

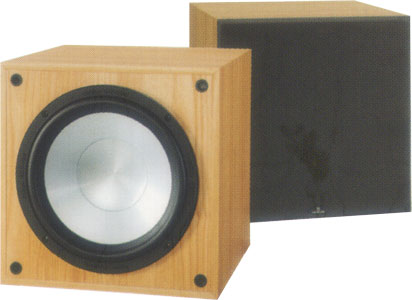

The BRW-10 subwoofer represents
a significant step up from its predecessor - the highly
regarded ASW 100. It's as compact as its forerunner,
but more potent in every respect. A new 10" MMP® II
driver and 150 watt Class-D power amplifier have been
devised in tandem to provide class-leading standards
of control, speed and punch. Featuring a new, fully
integrated switch mode power supply, the new amplifier
develops fifity percent more power than ts predecessor,
adding grip and clean bass delivery below 30 Hz, A range
of beautiful pearlescent finishes complement its accomplished
deep bass performance with superlative looks.
|
| |
|
FEATURE:
|
| |
|
Model
|
BRONZE REFERENCE W
10
|
|
SPECIFICATIONS
|
|
LOw Frequency Limit |
27 Hz |
| Upper Frequency
Limit |
40 ~ 120 Hz variable |
|
Low Pass Filter |
4th order 24 db /
octave |
| Cabinet Specification |
18 mm M.D.F construction |
|
Amplifier Output |
150 Watts (R.M.S)
Class D amplifier |
| Driver Complement
|
1 x 10" MMP® II
Long throw driver |
|
Input Impedance |
20 K Ω |
| Mains Input Voltage |
100 ~ 120 Vac,
200 ~ 240 Vac (Factory Preset) |
External Dimensions
(H xWxD) mm (inches) |
320 x 320 x 340
(13 3/8 x 13 3/8 x 14 ½) |
| Weight Each KG
(lbs) |
10 ( 22) |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
