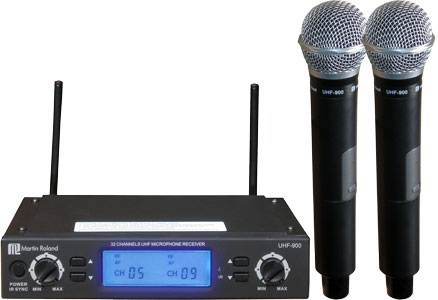

  Full Product

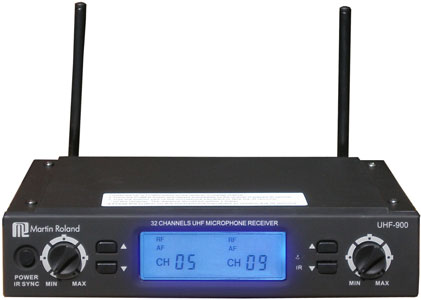

  Front View

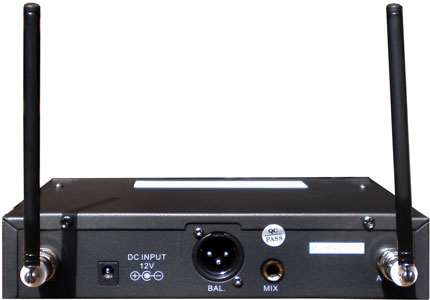

  Back View

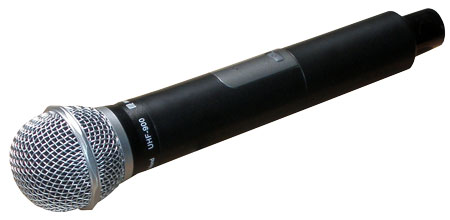

  Microphone

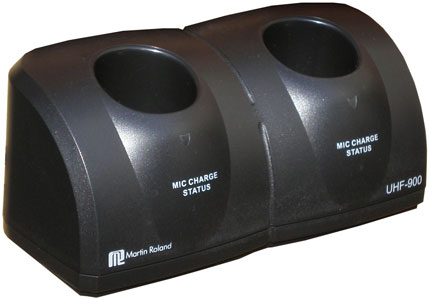

  Accessories
SHARE IT ›››

































   Wireless Microphone



FEATURE:

  • 32 Channels
  • UHF Band
  • External Charger Included

  Model

UHF900

SPECIFICATIONS
Carrier Frequency Range UHF 610 ~ 810 MHZ
Oscillation Mode Phase Locked loop Control
Carrier Wave Stability 10 PPM
Switching Bandwidth 24 MHz
Frequency Space ≥250 KHz
Sensitivity -105 dB @ sinad = 12 dB
S/N Ratio > 105 dB
T.H.D < 0.5% @ 1 KHz
Image Rejection 85 dB Typical
Spurious Rejection 75 dB Typical
Frequency Response 40 Hz ~ 18 KHz
Working Distance 200 feet
Squelch Control Dual Squelch circuit
AF output Impedance 2.2 KΩ
Max. Output Level Balanced 0 ~ 400 mV
  Unbalanced 0~200mV
Display LCD
Power Supply 0.5 A ,12~18VDC
Output Socket XLR Balanced Socket
  Unbalanced TRs Socket


Transmitter
Power 30 mW
Spurious < 40 dB(carrier)
Battery 1.5 V x 2
Battery Life 4 Hrs (vary)
