 Wireless
Microphone |
|
|
|
| |
|
FEATURE:
-
UHF
Band
-
DUAL
CHANNEL
-

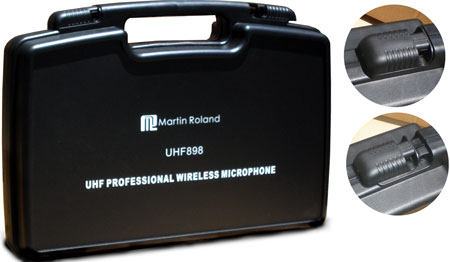

INCLUDE
CASE
|
| |
|

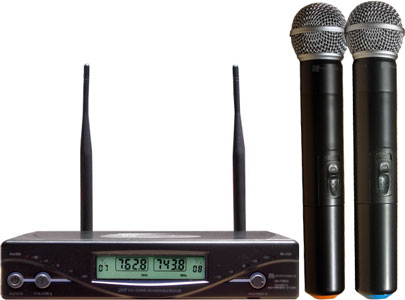

Model |
UHF 898
|
|
SPECIFICATIONS
|
| Frequency
|
614~698
MHz |
|
Frequency Stability |
± 0.005% (-10°C ~
50°C) |
| Modulation
Mode |
FM |
|
Max Modulation Frequency |
± 40 KHz |
| Frequency
Response |
40
Hz ~ 20 KHz |
|
S/N |
100 dB |
| Effective
Range |
60m |
|
Distortion |
≤ 0.5% |
Work
Temperature
|
-10°C
~ 50 °C
|
|

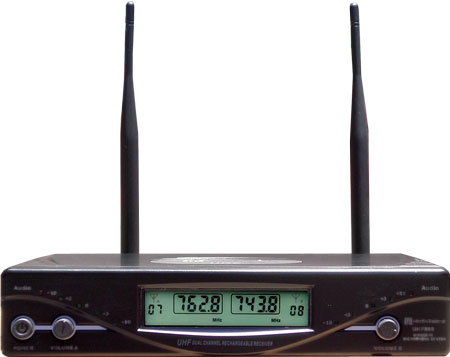

RECEIVER
|
| RECEIVER
MODE |
Superheterodyne
double conversion |
|
Frequency Vibration |
PLL lock loop |
| Sensitivity |
-93
dBm |
|

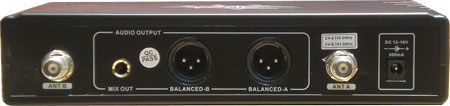

Audio Output |
|
| |
XLR
Balance output |
0~500
mV |
|
|
Ø 6.35 Unbalance output |
0~500 mV |
| Power |
220
V / 50 Hz or 110 V / 60 Hz |
|
Rated Power
|
5 W |
Power
Consumption
|
3
W
|
|

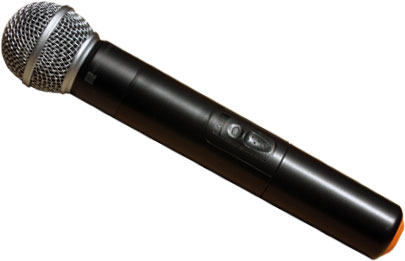

MICROPHONE |
| RF
Output Power |
≤
10mW |
|
Type |
Clutter Suppression |
| Antenna
|
Hidden
external power |
|
Pickup Head |
Dynamic Cardioid Directivity |
| Batteries
|
2
x AA 6 Hrs |
|
| |
|
| |
|
|
