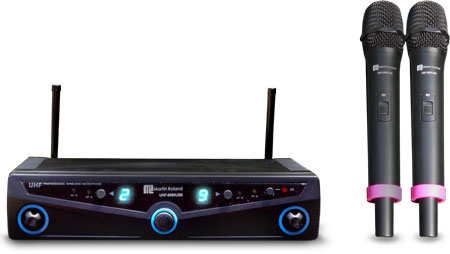

  Full Product

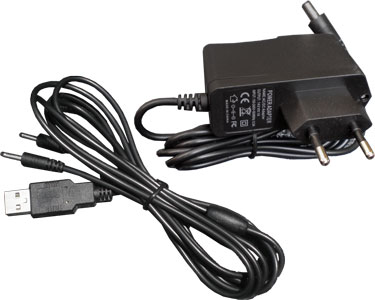

  Accessories

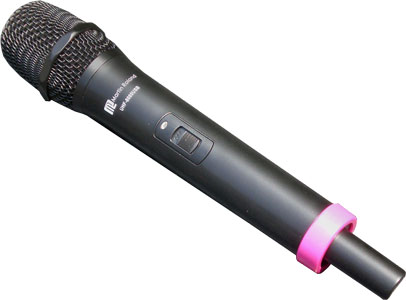

  Microphone

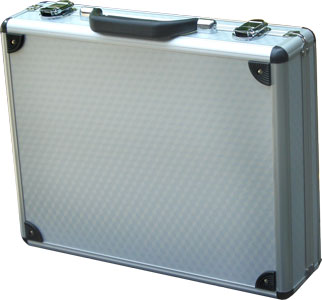

  Casing
SHARE IT ›››






























   Wireless Microphone



FEATURE:

  • Desktop receiver and enhanced muting, high signal /noise ratio
  • Almost zero noise output when on standby.
  • Broad frequency response range super low distortion.
  • No impact on switching receiver, ensure safety of rear stage amplifier system and speaker.
  • Perfect operative status signals, fluorescence display, with digital microphone.
  • Long practical distance. Over 30m in ideal circumstance, 20 m radius in complex circumstances.
  • 17x2 frequency design that allows two microphones to be used at the same time without mutual interference.
  • Applicable for medium & small stages, karaoke halls and home entertainment

 Model

UHF 8080 USB

SPECIFICATIONS
Carrier Wave Frequency Range UHF 610~680 MHz
Oscillation Mode Phase-locked loop controlled
Carrier Wave Stability 10 PPM
Switching bandwidth 24 MHz
Frequency Space ≥ 250 KHz
Sensitivity -105 dB @ sinad=12 dB
S/N Ratio >105 dB
T.H.D < 0.5% @ 1 KHz
Image Rejection 85 dB typical
Spurious rejection 75 dB typical
Frequency Response 40 Hz ~ 18 KHz
working distance 200 feet
Squelch Control Dual squelch circuit
AF Output Level Balance 0~400 mV
Unbalance 0~200 mV
Display LCD
Power Supply 0.5 A 12~18 VDC

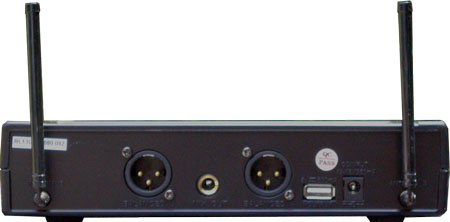

Output Connector
 		 XLR Balanced Socket
Unbalance TRs 6.35 socket


TRANSMITTER
Transmitter Power 30 mW
Spurious emission <40 dB (with Carrier)
Display LED
Battery Voltage 1.5 x 2
Battery Life 4 hours
Chargin time 8 hours
