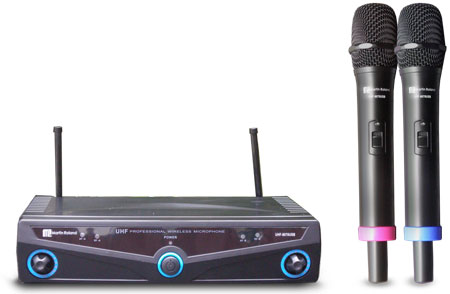

Wireless Microphone



FEATURE:

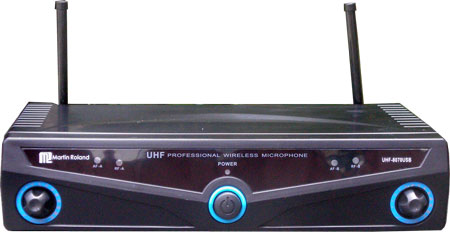

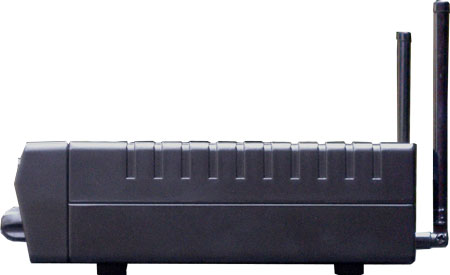

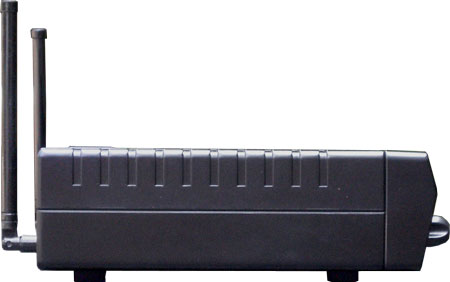

  • Desktop receiver and enhanced muting, high signal /noise ratio
  • Desktop receiver supports both balance & unbalance Audio output.
  • Almost zero noise output when on standby.
  • Broad frequency response range super low distortion.
  • NO impact on switching receiver, ensure safety of rear stage amplifier system and speaker.
  • Perfect operative status signals, fluorescence display, with digital microphone.
  • Long practical distance. Over 30m in ideal circumstance, 20m radius in complex circumstances.
  • Dual frequency design that allows two microphones to be used at the same time without interference.
  • Modern audio compandor return your tone quality extremely

  Model

UHF 8070 USB

SPECIFICATIONS

Carrier Wave Frequency Range UHF 600~815 MHz
Oscillation Mode Quartz Controlled Fixed Frequency
Carrier Wave Stability 10 PPM
Sensitivity -105 dB@ sinad
S/N Ratio > 105 dB
T.H.D < 0.5% @ 1 KHz
Image Rejection 85 dB Typical
Spurious Rejection 75 dB typical
Frequency Responses 40 Hz ~ 18 KHz
Working Distance 200 feet
Squelch Control dual squelch circuit
AF Output Impedance 2.2 KΩ
Max Output Level Balance 0~400mV
Unbalance 0~200mV
Display LED

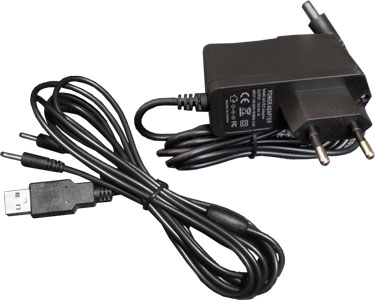

Power Supply 0.35 A, 12~18 VDC

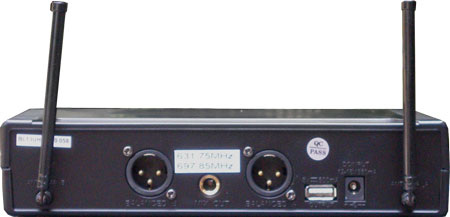

Output Connector 2 XLR Balanced Socket
Unbalance TRs 6.35 mm Socket

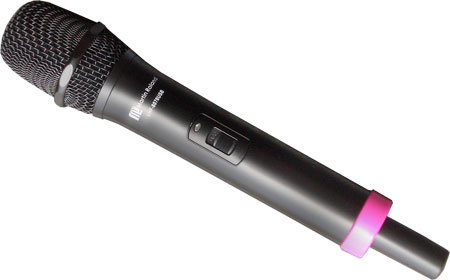

TRANSMITTER

Transmitter Power 30mW
Spurious Emission <40 dB (with carrier)
Display LED
Battery Voltage 1.5 V x 2
Battery Life 8 hours
