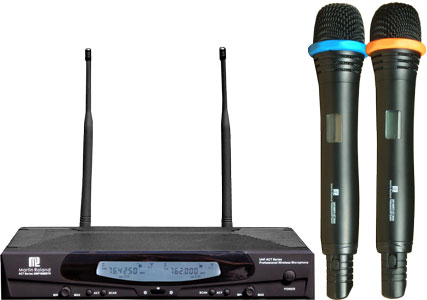

Full Product

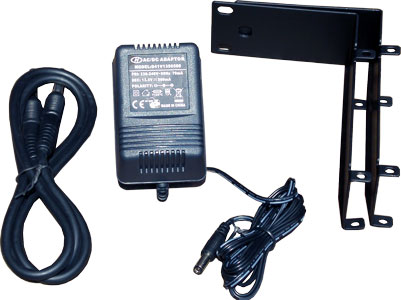

Accessories
Microphone
SHARE IT ›››
Wireless Microphone
FEATURE
:
Patent panel of receiver and transmitters
DUAL CHANNEL UHF
Automatic transmitter setup
Automatic frequency scanning
separate adjustment volume and squelch
diversity operation for increased reliability
Transmitter feature separate Guitar /mic trim control, switchable high/low RF power, internal channel selector, battery power status indicator
Intellectualized and multifunctional, humanized receiver
Model
UHF 1000 KTV
SPECIFICATIONS
Channel
100 channels
Frequency Range
730 ~ 860 MHz
Band width
<200 KHz
Frequency response
35 Hz ~ 20 KHz
Dynamic Range
>100 dB
T.H.D
< 0.5%
S/N ratio
> 90 dB
Valid distance
0.50m

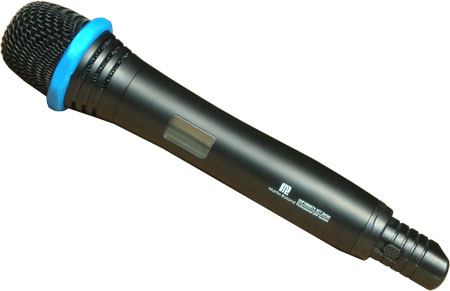

Transmitter
Transmission Power
10 mW / 5mW
Oscillation mode
PLL
Image controlment
> 50 dB
Adjust frequency dviation
< 75 KHz
Channel switch mode
coding switch
Power
DC 2.4 ~ 4.8V

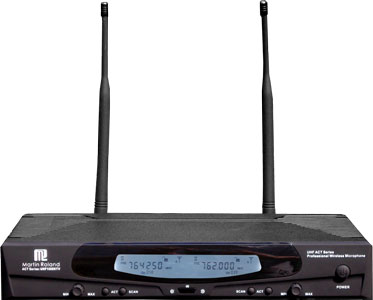

Receiver
Sensitivity
2.0 µV
Oscillation mode
PLL
S/N Ration
> 90 dB
Distortion
< 0.5%
Output
2 * Balance and 1 * 6, 35mm mixed
Power
DC 14~22V
