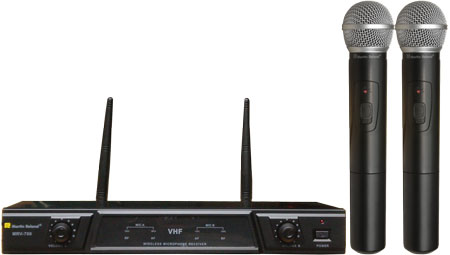

 Wireless
Microphone |
|
|
|
| |
|
FEATURE:

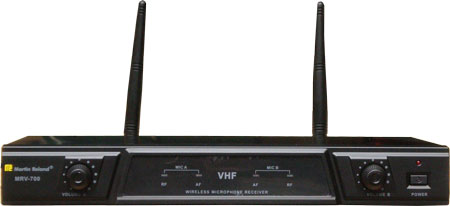

- Desktop receiver
and enhanced muting, high signal /noise ratio
- Almost zero noise
output when standby.
- Broad frequency
response range, super low distortion.
- No impact on switching
receiver, ensure safety of rear stage amplifier system
and speaker.
- Perfect operative
status signals, fluorescence display, with digital microphone
- Long practical
distance.
- Over 30 m in ideal
circumstances; practical 20 m radius in complex circumstances.
- Dual frequency
design. Be able to use two microphones at the same time
without mutual interference.
- Applicable for
medium& small stages, karaoke halls, and home entertainment
etc.
|
| |
|
Model |
MRV 700 R
|
|
SPECIFICATIONS
|
| Frequency Range |
170
~ 260 MHz |
|
Frequency Stability |
± 0.005% |
| Modulate Mode |
FM |
|
Frequency Response |
50 ~ 16000 Hz |
| Signal to Noise
Ratio |
>
60 dB |
|
Maximum Sound Pressure |
≥ 120 dB |
| Distortion Factor |
≤1% |
|
Effective field |
30 m |
Operation Temperature
|
10°C
~ 50°C
|
|

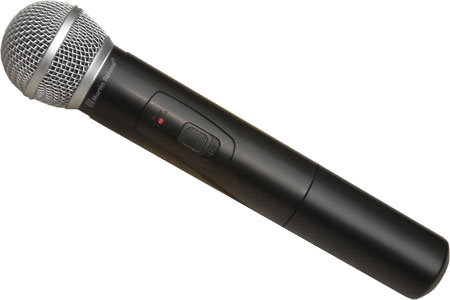

Transmitter
|
| Frequency Range |
170
~ 260 MHz |
|
Frequency Stability |
15 PPM |
| Modulate Mode |
FM |
|
Modulate degree |
>30 KHz |
| Emission
Power |
30
mV Max |
|
Harmonic suppression |
40 dB |
|
Battery
|
1.5
V AA
|
|
Antenna
|
Built in |
Battery Current
|
25~30 mA
|
|

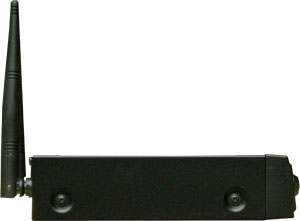

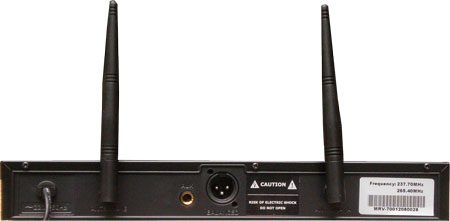

Receiver |
| Receive mode |
Crystal
Frequency Lock |
|
Frequency Range |
170 ~ 260 MHz |
| Frequency Stability |
15
PPM |
|
Sensitivity |
3µV 30 dB S/N |
| Signal To Noise
Ratio |
60
dB |
|
Audio Output |
0~0.5V / 4.7 K |
| Power |
AC
120~240V(±10%) |
|
| |
|
| |
|
|
