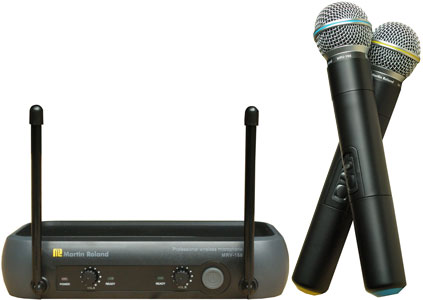

 Wireless
Microphone |
|
|
|
| |
|
FEATURE:
|
| |
|
Model |
MRV 168
|
|
SPECIFICATIONS
|
| Carrier Frequency
Range |
180
~ 270 MHz , VHF Band |
|
Frequency Stability |
±0.005% |
| Modulation |
FM |
|
Maximum Deviation
Range |
± 15 KHz |
| Frequency Response |
50
Hz ~ 15 KHz |
|
S/N Ratio |
> 100 dB |
| Audio Dynamic
Range |
>
100 dB |
|
T.H.D |
<1% |
| Service Area |
50
Meter (in Best Condition) |
|
Temperature Range |
-10 °C ~ 50°C |
|
|
|
|

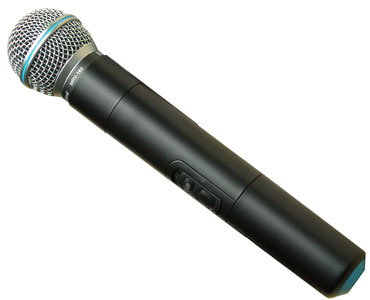

Microphone
|
|
RF Power Output |
30 mW (Max) |
| Spurious Emission |
Over
45 dB carrier wave |
|
Antenna |
Built in |
| Microphone element |
Unidirectional
Dynamic microphone |
|
Battery |
According to Situation |
| Current Consumption |
About
25 mA |
|
Battery Life |
Over 8 Hrs continuous
operation |
|
|
|
|

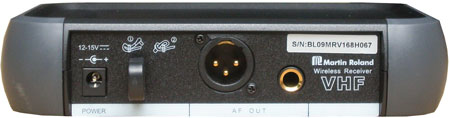

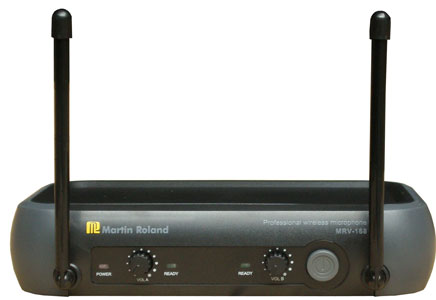

Receiver
|
|
Receiving System |
Fixed Frequency by
quartz controlled |
| Receiving sensitivity |
60
dB S/N Ratio (12 dB U) |
|
S/N Ratio |
> 100 dB |
| Audio Output level |
Unbalanced mode
of CHA + B |
0~0.5V 5 KΩ |
| |
Unbalanced mode of
CHA & B |
0~0.5V 50 KΩ |

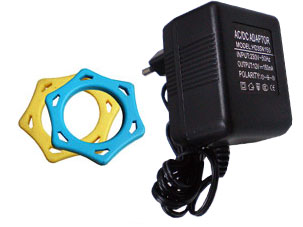

| Power Supply |
DC 12 ~ 15 V 150mA |
|
| |
|
|
|
| |
|
| |
|
|
