 Wireless
Microphone |
|
|
|
| |
|
FEATURE:
|
| |
|
Model |

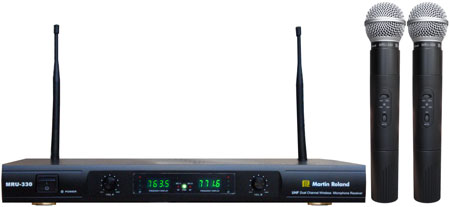

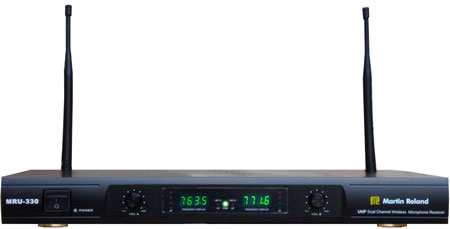

MRU 330
|
|
SPECIFICATIONS
|
|
RF Carrier Frequency
Range |
460 ~ 970 MHz, UHF
High Band |
| Operating Range |
100 m (Approx.
300 ft)
Under Typical Condition |
|
Audio Frequency Response |
50 Hz — 15 KHz, ±
3dB |
| T.H.D |
< 1% |
|
Mobile State Range |
> 100 dB |
| Operating Temperature |
-29°C — 74°C(-20°—165°F) |
|
Power Requirement |
120 V / 230 V AC |
| Signal Noise Ratio |
> 85dB |
|
Border Upon CH. Reject |
> 70 dB |
| Image & Spurious
Reject |
> 70 dB |
|
Audio Output Level |
0 ± 300 mV |
| Receiving
Sensitivity |
-105 dBm |
| |
|

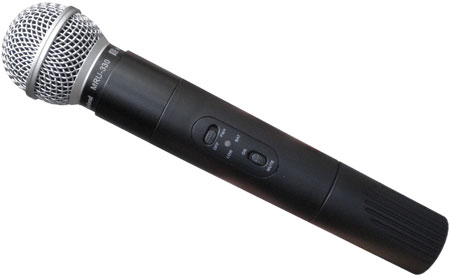

Handheld |
| Power Requirements |
9V |
|
Nominal Current
Drain |
< 40mA |
| Modulation |
FM |
|
Max deviation |
± 30KHz |
| Spurious Emission |
> 55 dB |
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
