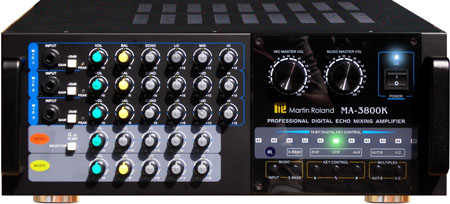

Karaoke Amplifier |
|
|
|
| |
|
FEATURE:
- Max. Power Output:
380W + 380W at 4ohms

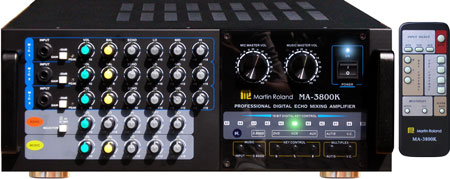

- Infrared Remote
control
- Innovative Digital
Echo effect Processing
- 4 microphone Inputs
(3 front/1 rear) for Usage
- Auto-gain Level
Indicators
- Microphone Input
Signal Attenuators
- Microphone Volume/Bass/Midrange/Treble/Balance/Echo
Level Adjust
- Echo Effect Volume/Bass/Treble/Repeat-deepness/Delay-time
control
- Music Volume/Balance/Bass/Midrange/Treble
Adjust
- 11 Steps Digital
Key Control
- 3 Audio sources
input Selector
- EFFECTOR IN/OUT
- 3 Video Input ,1
Video Output (RCA)
- Singing Partner/Vocal
Cancel function fits to multiplex karaoke media
- S.Bass switch for
musical bass and treble frequency extension
- Auto Video-In Switching
- Overload and Short
Circuit Protecting
- Advanced Channel
type Heating-blow System
- AC 110V/220V dual
voltage selection
|
| |
|
Model |
MA 3800 K
|
|
SPECIFICATIONS
|
|
Audio Output Max |
380 W+ 380W |
| Mic
Input Sensitivity |
15mV |
|
External device sensitivity |
250mV |
| Signal
/ Noise Ratio |
90dB(with IHF A filter) |
|
THD (1KHz. Aux 150mV
Input) |
0.1% |
| Frequency
Response |
25Hz ~ 20KHz |
|
Mic Tone Adjustment |
80Hz + 15dB,
3.5KHz + 5dB,
12Khz + 15dB |
| Echo
Tone Adjustment |
80Hz +
15dB,
12Khz + 15dB |
|
Power Source |
AC 230V / 50Hz |
| Electricity
consumption |
650 W |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
