 Karaoke
Amplifier |
|
|
|
| |
|
FEATURE:
- Four input channel
functions are automatically selected in the preset priority
sequence.
- Easy-to-sing high
performance digital echo.
- Effector terminal
which permits connection of a graphic equalizer.
- Five microphones
can beused simultaneously, one of which independently
permits ON/OFF of echo for use by an emcee.
- Low-impedance compatible
power amplifier configuration that can drive two sets
of speakers simultaneously.
- A ±4-position key
controller that can vary up to 2.5 pitch (chromatic
intervals) is incorporated. at the end of a tune. The
Standard pitch is resumed automatically.

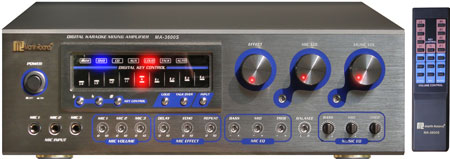

- A wireless remote
control which permits remote control of music volume,
microphone volume, echo level, key control and echo
mode.
- 4 Video Input ,1
Video Output (RCA)
- 1 Stereo Output
|
| |
|

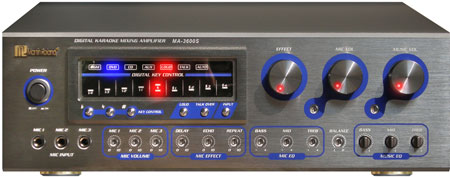

Model |
MA 3600S
|
|
SPECIFICATIONS
|
|
Audio output power
(1 KHz 8Ω) |
200 W + 200 W |
| Total
Harmonic Distortion |
0.05%(1
KHz, 60W , 8Ω) |
|
Audio input jacks
(Sensitivity/Impedance) |
| MIC
|
9mV / 2 KΩ |
|
BGM , DVD, CD, AUX |
300mV 51 KΩ |
| Frequency
Response |
|
MIC |
40 Hz to 15KHz, ±3
dB |
| MUSIC |
20 Hz to 20 KHz
± 2dB |
|
Tone control characteristics |
| Music |
BASS |
± 12 dB (100 Hz) |
| |
MID |
± 8 dB (2 KHz) |
| |
TREBLE |
± 12 dB (10 KHz) |
|
Microphone |
BASS |
± 12 dB (100 Hz) |
| |
MID |
± 8 dB (2 KHz) |
| |
TREBLE |
± 12 dB (10 KHz) |
| Speaker Impedance |
4Ω
~ 16Ω ( one channel only 1 or 2) |
| |
8Ω ~ 32 Ω (two channel
1 and 2) |
| Key Control Range |
11
Steps + 2½ tones |
|
Video Input Jack |
|
(Sensitivity
/ Input Impedance)
|
1 Vp-p / 75 Ω |
|
Video Output Jack |
|
(Output
level / output impedance)
|
1 Vp-p / 75
Ω |
|
Power Supply Voltage |
AC 230 V/ 50 Hz |
| Power
Consumption |
800 W |
|
AC Power Outlets |
SWITCH x 2
(TOTAL MAX x 220 W) |
| |
UNSWITCHED x 1
(TOTAL MAX x 220 W) |
|
| |
|
| |
|
|
