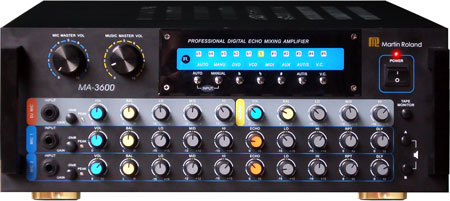

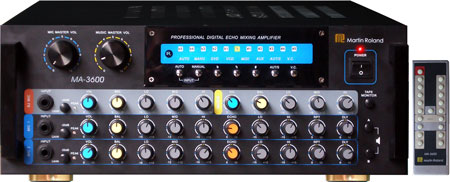

 Karaoke
Amplifier |
|
|
|
| |
|
FEATURE:
- SPEAKER SELECTOR
SYSTEM
- 4 Video Input 4
Video Output (RCA)
- 4 Stereo Input
- Heavy Range Out
with Switch
- REC Output and
Playback input
- PRE IN/OUT
- MIC,MUSIC,OK,MIX
output
|
| |
|
Model |
MA 3600
|
|
SPECIFICATIONS
|
|
Audio Output |
300 Watt + 300 Watt |
| MIC Input Sensitivity |
15 mV |
|
Signal / Noise Ratio
|
80 dB(With IHF A Filter) |
| T.H.D (1 KHz AUX
150 mV Input |
0.1 % |
|
Frequency Response |
25 Hz ~ 20 KHz
|
| Mic Tone Adjustment |
80 Hz ± 15 dB |
| |
3.5 KHz ± 5 dB |
| |
12 KHz ± 15 dB |
|
Echo Tone Adjustment |
80 Hz ± 15dB |
| |
12 KHz ± 15 dB |
|
Power Source |
AC 230 V / 50
Hz |
| Electricity Consumption |
750 W |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
