Transistor Amplifier |
|
|
|
| |
|
FEATURE:
|
| |
|
Model |

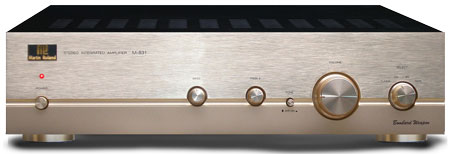

M 831
|
|
SPECIFICATIONS
|
|
Power Output |
80 W + 80W(8 Ω) |
| |
120 W + 120 W(4
Ω) |
|
Signal To Noise Ratio |
≥ 103 dB (A Weighted) |
| Load Impedance |
4 Ω ~ 8 Ω |
|
Input Impedance |
47 KΩ |
| Frequency Response |
10 Hz ~ 100 KHz
± 1dB |
|
Path Separation Level |
≥ 60 dB |
| Minimum EMF |
300 mV |
|
Mic Tone adjustment
High |
10 dB 13 KHz |
| Mic Tone adjustment
Low |
10 dB 60 Hz |
|
Path Unbalanced Level |
± 0.2 dB |
| Total harmonic
Distortion |
0.05 % ( 10 W
, 1 KHz) |
| |
0.1 % ( 50 W, 1 KHz) |
| Power Requirement |
AC 220 ~ 240V
/ 50 / 60 Hz ± 10 % |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
