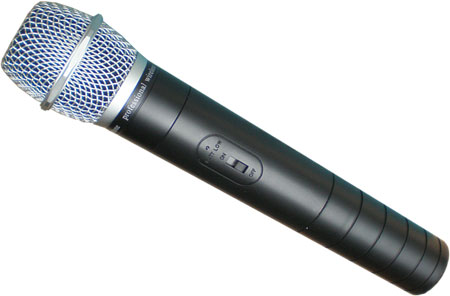

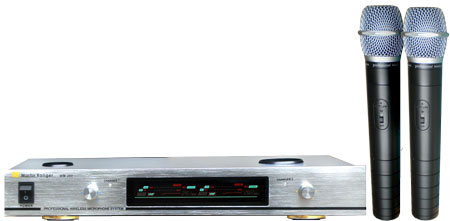

 Cordless
Microphone |
|
|
|
| |
|
FEATURE:
- VHF
- BLACK AND SILVER
COLOR (SET)
|
| |
|
Model |
WM 200-MK II
|
|
SPECIFICATIONS
|
| Frequency
Range |
170
~ 260 MHz |
|
Frequency stability |
± 0.005% |
| Modulate
Mode |
FM |
|
Frequency Response |
50 ~ 16 KHz |
| Signal
To Noise |
>
60 dB |
|
Max. Sound Pressure |
≥ 120 dB |
| Distortion
factor |
≤
1 % |
|
Effective field
|
30 m |
Operation
Temp.
|
10°C
~ +50°C
|
|

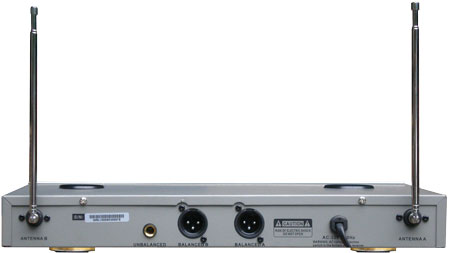

Receiver Specification
|
| Receiver
Mode |
Crystal
Frequency |
|
Frequency Range |
170 ~ 260 MHz |
| Frequency
stability |
15
PPM |
|
Sensitivity
|
3 µV S/N 30 dB |
| S/N
Ratio |
60
dB |
|
Audio Output |
0~ 0.5 V / 4.7 K |
Power
|
AC
120 ~ 240 V (±10 %)
|
|
Transmitter
Specification
|
| Frequency
Range |
170
~ 260 MHz |
|
Frequency Stability |
15 PPM |
| Modulate
mode |
FM |
|
Modulate degree |
> 30 KHz |
| Emission
Power |
30mV
Max |
|
Harmonic Suppression |
40 dB |
| Battery
|
9
V / 1.5V AA |
|
Antenna
|
Built -in |
| Battery
Current |
25
~ 30 mA |
|
| |
|
| |
|
|
