 MIXER |
|
|
|
| |
|
FEATURE:
- IPOD AUX input
only
- Built in MP3 Player
Connect to USB/SD
- Four Microphone
Inputs 2 Front /2 Rear)
- Individual Microphone
Volume Control
- Stereo Jack Audio
Output For Headphone
- Headphone Volume
Control
- Four Audio Input
Source Selector
- Microphone Treble
Control
- Microphone Bass
Control
- Microphone Echo
Control
- Music Treble Control
- Music Bass Control
- 9 Steps Digital
Key Control
- Multiplex Channel
Switching
|
| |
|

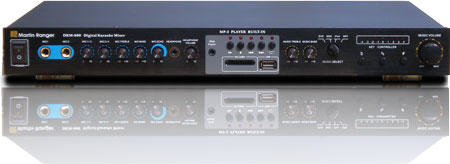

Model |
DKM 800
|
|
SPECIFICATIONS
|
| Microphone
|
6mV / 600Ω |
|
DVD input |
300 mV / 22 KΩ |
MIDI Input
|
300 mV / 22 KΩ
|
Frequency Response |
| Microphone |
100 Hz ~ 10 KHz |
|
Music |
25 Hz ~ 20 KHz |
|
|
|
|
Power |
|
Consumption |
40 W |
| Source |
AC 230 V
/ 50 Hz |
| |
|
Tone Controls |
| Music Tone |
Bass
|
-6 dB + 10 dB
(100 Hz) |
| |
Treble |
-6 dB + 10 dB (10
KHz) |
| Mic Tone |
Bass |
-5 dB + 8 dB (100
Hz) |
| |
Treble |
-5 dB + 8 dB (10 KHz) |
| |
|
|
|
T.H.D |
|
1 KHz AUX 150 mV input
|
0.1 % |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
