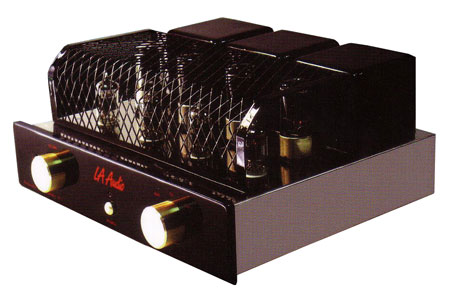

Vacuum Tube Amplifier |
|
|
|
| |
|
FEATURE:
- Push -Pull
integrated amplifier
|
|
| |
|
Model
|
M 3
|
|
SPECIFICATIONS
|
|
Power output |
20 W x 2 |
| Frequency
Response |
20 Hz ~ 20 KHz |
|
Harmonic Distortion |
1.5% (1KHz) |
| Input
Sensitivity |
300 mV |
|
Input Impedance |
50 KΩ |
| Output
Impedance |
4Ω , 8Ω |
|
Signal to noise ratio |
85 dB |
| input
signal |
3 Sets |
|
Tube Complement |
6N7 x 4
6N1 x 2
6N3 x 2 |
| Power
Consumption |
100 W |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
