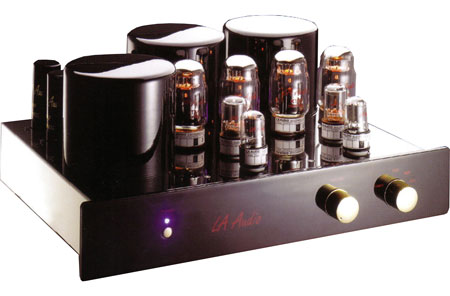

Vacuum Tube Amplifier |
|
|
|
| |
|
FEATURE:
-
Push-pull integrated amplifier
-
Sound is performed originally with high
defined bass and clear mid
|
| |
|
|
Model
|
A 60 |
|
SPECIFICATIONS
|
|
Power
output |
60W x 2 |
|
Frequency
Response |
20 Hz
~ 25 KHz |
|
Harmonic
Distortion |
0.7 % (1
KHz) |
|
Input
Sensitivity |
300 mV |
|
Input
Impedance |
100 K Ω |
|
Output
Impedance |
4 Ω,
8Ω |
|
Signal to
noise ratio |
88 dB |
|
input
signal |
5 sets |
|
Tube
Complement |
KT88 x 4
6SN7 (6N8P) x 2
6SL7(6H9C) x 2 |
|
Power
Consumption |
320 W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
|
