5.1 Speaker System |
|
|
|
| |
|
FEATURE:
-
5.1 Loud Speaker
-
Ribbon Driver System
-
Barbell D'APPOLITO structures
-
Exponential-type bulletproof fiber basin matching with
highly consumable caoutchouc edge
-
Tweeters all use ribbon technology
-
Super low vibration quality and annualar KAPTON band
membrane & Nd-Fe-Bo strong magnetic circuit system.
|
| |
|
Model |

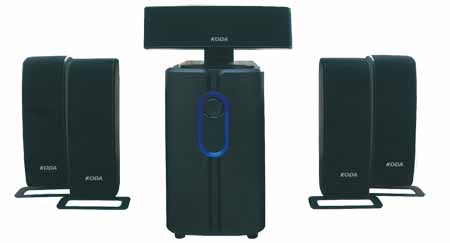

AS 8808
|
|
SPECIFICATIONS
|
| Rated Impedance
|
4Ω |
|
Rated Input Power |
50W ~ 100W |
| Sensitivity |
83dB±2dB |
|
Frequency Response: |
100Hz ~ 40Khz |
|
|
|
|
Subwoofer
|
|
Output Impedance |
4Ω |
| Output Power (Txd=10%) |
100 W |
|
Input Sensitivity |
50~180mV |
| Frequency Response |
35Hz~150Hz |
|
AS 8808 Woffer Dimension |
420 x 244 x 495 |
| AS 8808 Woffer
Net Weight |
15 Kg |
|
AS 8808 Center Dimension |
114.5 x 381 x 120 |
| AS 8808 Center
Net Weight |
2.85 Kg |
|
AS 8808 Surround Dimension |
120x381x114.5 |
| AS 8808 Surround
Net Weight |
2.1 Kg |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
