 Wireless
Microphone |
|
|
|
| |
|
FEATURE:
|
| |
|

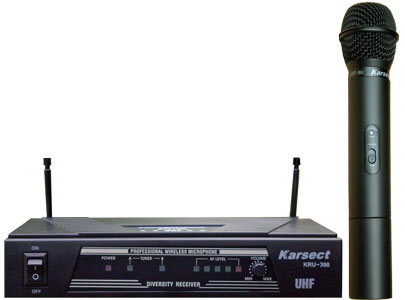

Model |

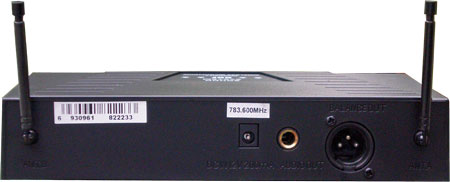

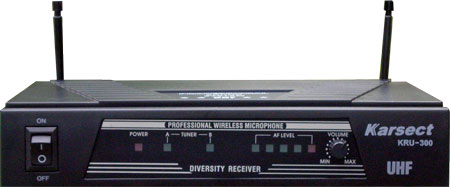

KRU 300(Receiver Set)
|
|
SPECIFICATIONS
|
|
RF Carrier |
460~860 MHz |
| Operating
Range |
100m
(app. 300 ft) under typical conditions |
|
THD |
<1% |
| Mobile
Stste Range |
>100dB |
|
Power Requirements |
120V / 230V AC adaptor
with 2.1 mm female plug |
| Power
Requirements |
12~18
V DC nominal , 300mA |
|
Signal / Noise Ratio |
> 85 dB |
| Border
Upon Channel Rejection |
>
70 dB |
|
Image & Spurious Rejection |
> 70 dB |
| Audio
Output Level |
0
~ ± 300 mV |
Receiving Sensitivity
|
-105 dBm
|
|

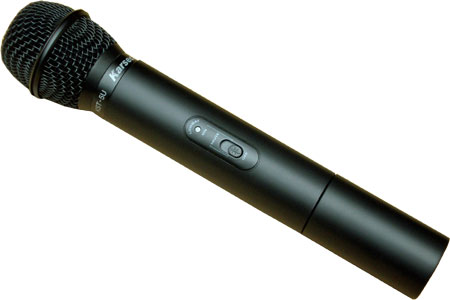

Handheld (KST 5U) |
|
Power Requirements |
9 V alkaling battery
1.5 V AA battery |
| Nominal
Current Drain |
<
40 mA |
|
Modulation Type |
FM |
| RF
Output |
>
10 dBm |
|
Max Deviation |
± 30 KHz |
| Spurious
Emission |
>
55 dB |
|
| |
|
| |
|
|
