 Wireless
Microphone |
|
|
|
| |
|
FEATURE:
- UHF
- PLL 16 CH
- Diversity Dual
Channels Receiver
|
| |
|
Model |

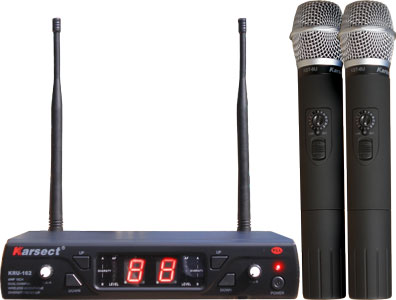

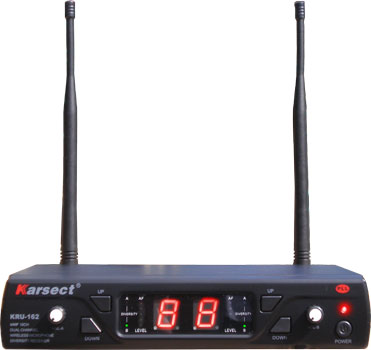

KRU 162 (Receiver Set)
|
|
SPECIFICATIONS
|
|
RF carrier Frequency
Response |
460 ~ 860 MHz |
Effective
Range
Actual working range difference due to interference |
100m
(300 ft.) Under optimal Conditions |
|
Audio Frequency Response |
50 Hz ~ 15 K Hz ±
3dB |
| Receiver
Audio Output Level (25 KHz deviation, 400
Hz Tone) |
|
|
XLR connector
(into 600Ω load) |
24mV |
| |
1/4 inch connector
(into 3K Ω load) |
360
mV |
|
Impedance |
|
| |
Body Pack (input) |
500
KΩ |
|
|
Receiver |
50 Ω antenna level
3 KΩ at mic level |
| Modulation |
FM
±25 KHz |
|
RF Power Output |
10mW |
| Dynamic
Range |
>
100 dB |
|
RF Sensitivity |
-105 dBm (S/N -12
dB) |
| Image
Rejection |
80
dB typical |
|
Spurious Rejection |
60 dB typical |
Ultimate
Quieting
(reference 25KHz deviation) |
-105dBm |
|
System Distortion |
<1% total harmonic
distortion , typical |
| Power
Requirements |
12~18
VDC (negative ground), 800mA |
| |
|
|
Body- Pack Transmitter
Output |
| Actual
Impedance |
50Ω |
|
Nominal Output Level |
10 mW |
|
|
|
Hand held Transmitter
Input |
|
Input Configuration |
50Ω |
| Actual
Impedance |
500
KΩ (GT) |
| |
|
|
Handheld Transmitter
Output |
| Actual
Impedance |
50
Ω |
|
Nominal Output Level |
10 mW |
|
|
|

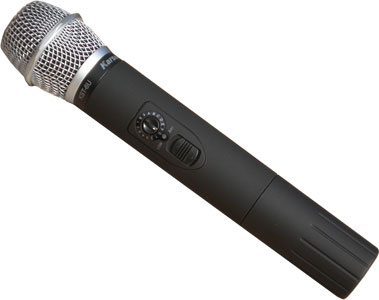

Handheld Microphone
(KST 6 U) |
|
Frequency Range |
460 ~ 860 MHz |
|
RF Output
|
10 mW |
|
Modulation Type |
FM |
| Max
Deviation |
±
40 KHz |
|
Spurious Emission |
> 40 dB |
| Power
Requirement |
3
V ( 2 x 1.5 V AA) |
|
| |
|
| |
|
|
