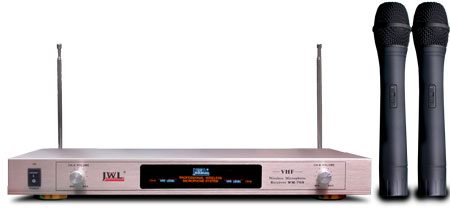

Wireless Microphone


  FEATURE:
  • VHF Band

 Model

WM 768

SPECIFICATIONS
Oscillation mode Quartz controlled
Carrier Frequency Range VHF 160~270 MHz
Stability ± 0.005%
Deviation Range ± 15 KHz
Dynamic Range > 110 dB
S/N Ratio > 110 dB
T.H.D < 0.5%
Frequency Response 50 Hz ~ 18 KHz

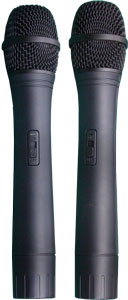

Transmitter
Mike Capsule Dynamic (handheld)
Condensor (clip)
Antenna Built in housing (handheld)
Built Out housing (box)
RF output < 10 mW
Spurious < -60 dB
Battery 9V

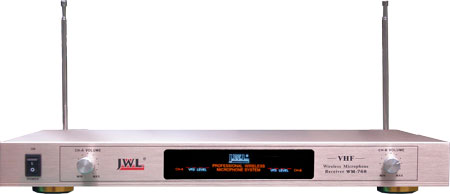

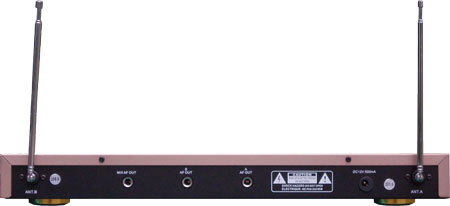

Receiver
Sensitivity 6dBµ V at S/N >80 dB
S/N Ratio > 100 dB
Image Rejection > 60 dB
Stability > 80 dB
Audio Output 1000mVp-p @600Ω

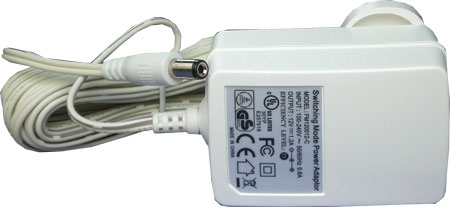

Power Supply 12 V DC 0.5A
