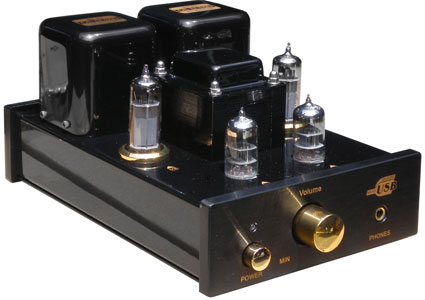

 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
- USB connect to
Computer as USB speaker
|
| |
Model |
GS-Mini 2008 |
|
SPECIFICATIONS
|
|
Vacuum Tube
|
6N3 x 2,
EL84 x 2 |
|
Output Power |
6W x 2 |
|
Distortion
of Harmonic Wave |
≤2％(1KHz)
|
|
Output Impedance
|
8Ω |
|
Frequency
Response |
25HZ-20KHZ(±1db)
|
|
Input Impedance
|
47kΩ |
|
Input sensitivity |
( Integrated
) 350mV |
|
Signal-to-Noise
Ratio |
85dB |
|
Consumption
of power source |
80W
|
|
Power
( Switchable )
|
AC115V - 230V, 50Hz-60Hz |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
