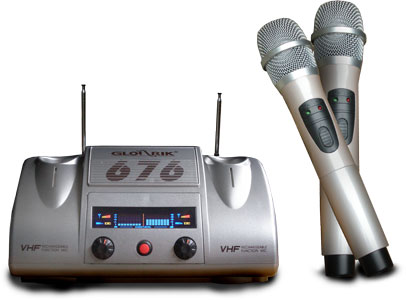

 Wireless
Microphone |
|
|
|
| |
|
FEATURE:
- BUILT IN RECHARGING
UNIT FOR 9V BATTERY
- Using VHF 170~270
MHz band to avert interference frequency.
- Using multilevel
high frequency and mid frequency narrowband filter,
so as to dispel and any possible interference signals.
- All audio of quartz
crystal oscillating, have very high frequency stability.
- With audio compressing-expanding
technology, the machine can lower noise and increase
the dynamic range
- With the function
of aborting the noise of feedback, it can effectively
reduce the screechy.
- A specially designed
circuit switch is on the phone. It is for clearing up
waves of miscellaneous signals.
- The inside circuit
which can eliminate the noise of switch on/off blocking
any noise when you switch on or off, also to protect
your expensive speaker.
- Uniform cardioids
pickup pattern isolates the main sound source and
minimize background noise.
- effective, Built
-in spherical wind and pop filter.
- Selected the good
crystal and components which make the timbre more clear.
- Longest distance
in open 100m. Idealist distance in open 50m.
|
| |
|
MODEL |
GM 676
|
|
SPECIFICATION
|
| Frequency Range |
170
~ 270 MHz VHF Band |
|
Frequency Stability |
± 0.005% |
| Modulation Mode |
FM |
|
Audio Response |
50 Hz ~ 16 KHz (±3
dB) |
| Signal To Noise
Ratio |
>
90 dB |
|
T.H.D |
< 0.8 % |
| Useful range |
50m
to 100m |
|
Temperature Range |
-5°C ~ 55°C |
|
|
|
|

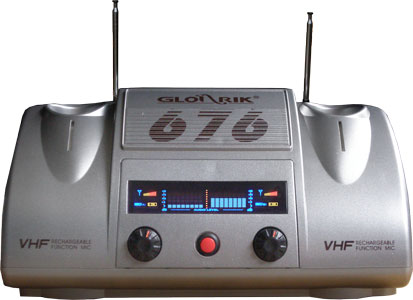

RECEIVER
|
|
Receiving channel |
2 Channels |
| Receiving system |
Quartz
vibration locking high stability |
|
Sensitivity |
10 µV / 40 dB emf |
| Removing weight |
50ms |
|
Audio Frequency output |
0 ~ 0.35 Vp-p 5Ω
duty |

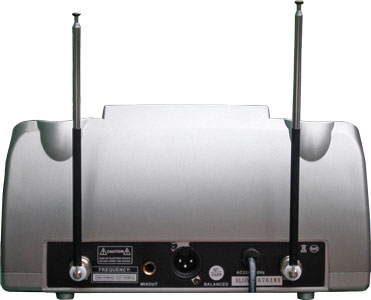

| Output connector |
Ø6.3
mm plug |
Power
|
AC 220 V / 50 / 60 Hz
|
|

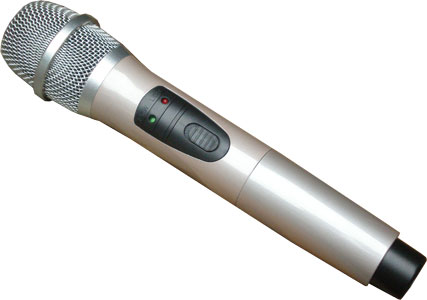

MICROPHONE |
|
Radio output power
|
>20 m W |
| Antenna |
Hide
inside |
|
Pre-weight |
50µs |
| Cartidge |
Moving
coil dynamic |
|
Battery consumption |
< 30 mA |
| Battery life |
8
hours time of duration |
|
Battery |
9 V battery |
| Temperature Range |
-5°C
~ 55°C |
|
| |
|
| |
|
|
