 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
- Four KT88/6550s
are used for class AB1 P.P amplification.
- The toroid
power transformer and EI audio transformer are
specially manufactured for CAYIN VENUS VP-100i
by applying our unique workmanship, which has
low magnetic leakage, wide frequency response
and low impedance.
- Two 6SL7s
and two 6SN7s are used in the preamplifier.
- One 6SN7
uses as regulator.
- Ultralinear
and triode select.
- All-vacuum
tube design, all hand-made.
- Remote
control.
|
| |
|
|

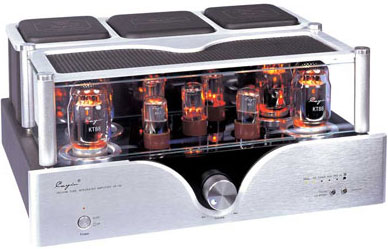

Model
|
VP 100i
|
|
SPECIFICATIONS
|
|
Power Output |
2 x 24 W(8Ω , Triode) |
|
|
2 x 50 W(8Ω ,
Triode) |
|
Frequency Response |
10 Hz ~ 45 KHz (-1.5dB) |
| T.H.D
1% (1 KHz) |
1% (1KHz) |
|
Input Sensitivity |
400mV |
| |
600mV (Pre) |
|
S/N Ratio |
91 dB |
| Input
Impedance |
100 KΩ |
|
Output Impedance |
4Ω, 8Ω |
| Power
consumption |
< 270 W |
|
Tube |
KT88 (6550) * 4 |
| |
6SN7*3 |
|
|
6SL7*2 |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
