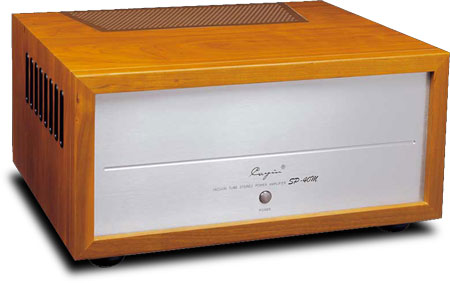

 Vacuum
Tube Amplifier |
|
|
|
| |
|
|
| |
|
Model
|
SP 40 M |
|
SPECIFICATIONS
|
| Power
Output |
40W + 40W (RMS
8Ω) |
|
Frequency Response |
15 Hz ~ 35 KHz |
| T.H.D |
1% (1 KHz) |
|
S/N Ratio |
89 dB |
| Input
Sensitivity |
710mV |
|
Input Impedance |
100 KΩ |
| Output
Impedance |
4Ω, 8Ω |
|
Tube Used |
12AX7 x 1
12AU7 x 2
KT88 x 4 |
| Power
Consumption |
280 W |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
