 PRE-AMP |
|
|
|
| |
|
|
| |
|
Model
|

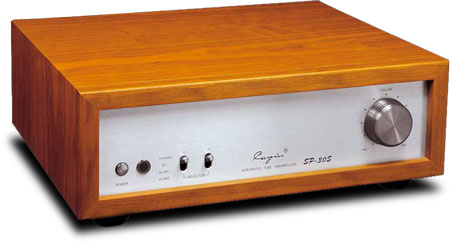

SP 30 S |
|
SPECIFICATIONS
|
| Frequency Response |
5 Hz ~ 150 KHz (± 1dB) |
|
T.H.D |
0.0015% (1 KHz) |
| Output Level |
350 mV |
|
S/N Ratio |
98 dB |
| Total Gain |
15 dB |
|
Input Impedance |
47 KΩ |
| Power Consumption |
30 W |
|
|
|
| |
|
|
PHONO
|
|
Input Sensitivity |
3 mV |
|
Input Impedance |
47 KΩ |
|
RIAA |
< ± 0.25 dB |
|
Total Gain |
40 dB |
|
S/N Ratio |
68 dB |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
