 HI-FI
CD player |
|
|
|
| |
|
FEATURE:
- Aluminium
decorative panels, VFD display and digital control
double and elegant
-
Uses SONY mechanism system、PHILIPS CD18
servo circuit
- Uses
U.S. company TI SRC4192 chip to process digital
to analog convert
- Analog
audio output circuit uses two 12AU7 tubes to
buffer output
- High
performance optical and coaxial digital signal
output.
- Uses
US Company CIRRUS LOGIC 's CS4398
IC digital filter, D / A Converter
- Low-pass
filter circuit using high-quality audio-specific
op amp.
- Developed
using the expertise-based machine with low flux
leakage, high efficiency, EI-type transformer
|
|
| |
|

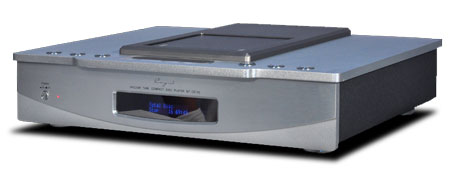

Model
|
MT CD 100
|
|
SPECIFICATIONS
|
| Output
Level |
2V ± 3 dB |
|
Frequency Response |
20 Hz ~ 20 KHz ± 0.5
dB |
| Distortion
and noise |
<-70 dB |
|
S/N Ratio |
95 dB |
| Power
consumption |
30 W |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
