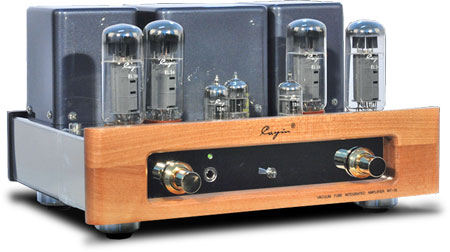

 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
-
Elegant and compact design with high grade
stainless steel glossy chassis, and birch
wood as front panels.
-
Advanced automotive spray painted
transformer casing
-
high-quality broadband sound EI output
transformer
-
Toroidal power transformer standalone
package eliminating interference
-
tubes use Russian SOVTEK 12AX7, 12AU7 x 2,
four EL34 ( intererchangeable with EL34,
6CA7),
-
UK RS power switch knob.
-
Nichicon filter caps
-
Handcrafted with supported Scaffolding
welding and Independent shielding
-
The complete elimination of internal
interference brings sounds fine and rich
-
Overall well balance strong performance
-
Excellent performance with Rogers LS3/5a,
THIEL2.2.
-
Using two high-quality broadband sound
output transformer EI
-
Specially manufactured toroidal power
transformer low magnetic leakage, high
efficiency.
-
Preamp driven by two 12AU7 vacuum tubes and
a Russian electro-harmonix 12AX7EH tube
-
Class AB 1power Amplifier driven by four
EL34 tubes
-
Headphone output
-
Japanese ALPS potentiometer High Performance
motor
-
Easy installation of plug-in tube shield
|
|
| |
|
Model
|
MT-35 |
|
SPECIFICATIONS
|
|
Power
Output |
32W + 32W
(RMS 8 Ω) |
|
Frequency
Response |
18 Hz ~ 40
KHz (± 1dB) |
|
T.H.D |
1% (1KHz) |
|
S/N Ratio |
86 dB |
|
Input
Sensitivity |
290 mV |
|
Input
Impedance |
100 KΩ |
|
Output
Impedance |
4Ω, 8Ω |
|
(Headphone) |
32Ω~300Ω |
|
Tube Used |
12AU7 x 2,
12 AX7EH x 1
EL 34 x 4 |
|
Power
Consumption |
260W |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
