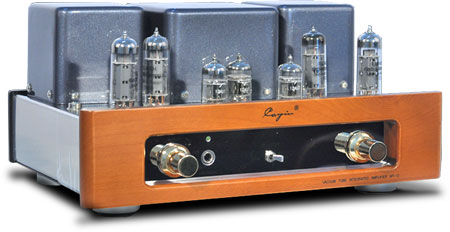

 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
-
Elegant and compact design with high grade
stainless steel glossy chassis, and birch
wood as front panels.
-
Advanced automotive spray painted
transformer casing
-
high-quality broadband sound EI output
transformer
-
Toroidal power transformer standalone
package eliminating interference.
-
Tube use a 12AX7, two 12AU7, four former
Soviet 6π14π
(interchangeable with EL84, 6BQ5, 6P14)
-
ELNA filter capacitor
-
ALPS potentiometer High Performance motor
-
UK RS power switch knob.
-
Separately shielded preamp box
-
Handcrafted with supported Scaffolding
welding
-
The complete elimination of internal
interference brings sounds fine and rich
-
Overall well balance strong performance
|
|
| |
|
Model
|
MT-12 |
|
SPECIFICATIONS
|
|
Power
Output |
12W + 12W
(RMS 8 Ω) |
|
Frequency
Response |
20 Hz ~ 20
KHz (± 1dB) |
|
T.H.D |
2% ( 1KHz) |
|
S/N Ratio |
87 dB |
|
Input
Sensitivity |
230 mV |
|
Input
Impedance |
100 KΩ |
|
Output
Impedance |
4Ω, 8Ω |
|
Power
Consumption |
120 W |
|
Tube Used |
12AX7 x 1,
12AU7 x 2,
Russia 6π14π x 4 |
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
