 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
-
Voltage amplification
driven by two 12AU7EH vacuum tube and 12AX7EH
vacuum tube
respectively.
-
Using four
KT88EH Vacuum tubes to for Class AB1 power amplifier.
-
Triode and
ultra linear functions. Triode works provide,
softness, pure and smooth,
reproduce human voice,
stringed instrument and other types of music;
Ultra linear provide, music opening,
acoustic, powerful and good for complex, rich,
dynamic and other types of music.
-
External power
tube current adjustment (BIAS ADJUSTMENT), monitors
(BIAS) function
|
|
| |
|

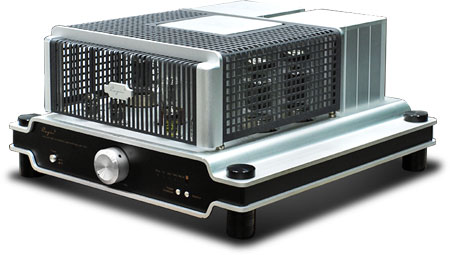

Model
|
MP 100S
|
|
SPECIFICATIONS
|
|
Rated Power Output |
2 x 24 W (RMS Triode
) |
| |
2 x 50 W (RMS
Ultra linear) |
|
Frequency Response |
10 Hz ~ 45 KHz (-1.5
dB) |
| T.H.D |
1% (1 KHz) |
|
Input Sensitivity |
400 mV (Integrate) |
| |
600 mV (Powered) |
|
Input Impedance |
100 KΩ |
| Output
Impedance |
4Ω, 8Ω |
|
Power Consumption |
270 W |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
