Vacuum
Tube Amplifier |
|
|
|
FEATURE:
- Four 6V6/6L6s are used for class AB1 P.P amplification. This vacuum tube not only is of great speed to the music signal, but also high dynamic.
- The toroid power transformer and EI audio transformer are specially manufactured for Cayin M6 by applying our unique workmanship, which has low magnetic leakage, wide frequency response and low impedance.
One 12AX7 and two 12AU7s are used in the preamplifier.
- The high quality capacitor is selected in the coupling circuit.
- The input position is selected in the coupling circuit.
- Remote control volume.
- With headphone output.
- All-vacuum tube design, all hand-made
|
|
|

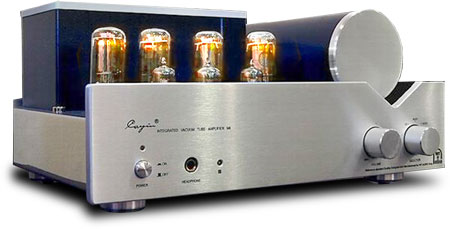

Model
|
M-6
|
SPECIFICATIONS
|
Power Output |
2 x 10 W (RMS 8Ω) |
Frequency
Response |
20 Hz ~ 20 KHz
|
T.H.D |
1% (1KHz) |
Input
Sensitivity |
260mV
|
S/N Ratio |
87 dB |
Input
Impedance |
100 KΩ |
Output Impedance |
4Ω, 8Ω |
headphone
output impedance |
32Ω~300Ω |
Power consumption |
95 W |
Dimension |
310 x 185 x 275
mm |
Weight |
13 Kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
