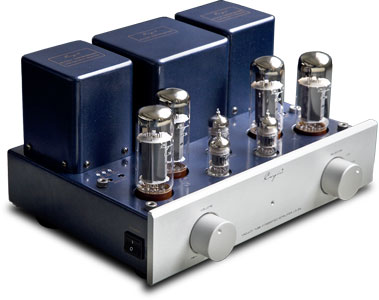

 Vacuum
Tube Amplifier |
|
|
|
| |
|
|
| |
|
Model
|
LA-34 |
|
SPECIFICATIONS
|
|
Power
Output |
32W + 32W
(RMS 8 Ω) |
|
Frequency
Response |
10 Hz ~ 42
KHz (- 3dB) |
|
T.H.D |
1% ( 1KHz) |
|
S/N Ratio |
89 dB |
|
Input
Sensitivity |
260 mV |
|
Input
Impedance |
100 KΩ |
|
Output
Impedance |
4Ω, 8Ω |
|
Power
Consumption |
260 W |
|
Tube Used |
12AX7 x 1,
12AU7 x 2, EL34 x 4 |
|
Working
Condition |
Temperature 0°C ~ 40°C
Moisture 20% ~ 80% |
|
Storage
Condition |
Temperature -20°C ~ 70°C
Moisture 20% ~ 90% |
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
