 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
-
The All New Look ,Audiophile Concept, Vaccum
tubes with MOSFET hybrid circuit design.
-
Has central processor (CPU), Intelligent
control, well protected design
-
Full function remote control,
-
Extensive range of signal input and output
terminals, special balanced input terminals.
-
Power amplifier driven by strict pairing of
24 large current MOSFET. With excellent
current drive capability and excellent sound
performance.
-
Equipped with ultra- high-power supply
system .
-
Power amplifier driven two own production
fully shielded 500 watts toroidal power
transformer for left and right channel
respectively;
-
12 pcs imported branded 63V 10,000µF filter
capacitor , overall capacitance up 130000UF
or more. Ensuring the machine has strong
power supply.
-
Power amplifier stage work in Class A,
beautiful sound.
-
Each channel driven a 12AU7 or 6922 tubes .
-
Individual Dynamic large left and right
channel audio level meter.
|
|
| |
|

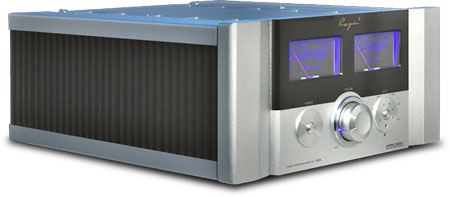

Model
|
H80 A
|
|
SPECIFICATIONS
|
|
Power Output |
80 W + 80
W(RMS 8Ω)
Class A Type |
|
|
150 W + 150
W(RMS 4Ω)
Class A/B Type |
|
Frequency
Response |
10 Hz ~ 40
KHz |
|
T.H.D |
<0.2% (1KHz),80W(8Ω) |
|
Input Sensitivity |
380mV |
|
S/N Ratio |
91 dB |
|
Input Impedance |
100 KΩ(RCA) |
|
Pre-Amp
Tube Compliment |
12AU7 x 2 |
|
Power consumption |
280 W |
|
Input
Terminal |
WBT Style
Speaker |
|
|
Gold
Plated RCA x 5 |
|
|
Tape Out x
1 |
|
|
Balanced XLR x 1 |
|
|
|
|
|
|
|
|
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
