 HI-FI

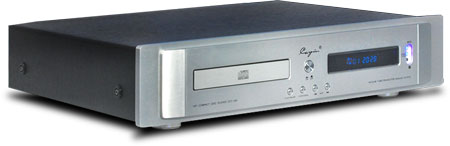

CD player |
|
|
|
| |
|
FEATURE:
-
simple and elegant appearance,
brushed aluminum panel, VFD dynamic display;
-
U.S. CIRRUS LOGIC CS4398 chip
digital filtering company, D / A conversion;
-
Analog audio output circuit driven
by vacuum tube 12AU7 to buffered output;
-
Optical digital output and coaxial
digital signal output;
-
Low-pass filter circuit using
high-quality audio special op amp IC;
-
EI type transformers specifically
developed for this machine which has low magnetic
leakage and high efficiency.
|
|
| |
|
Model
|
CD 11 T
|
|
SPECIFICATIONS
|
| Output
Level |
2 V ± 0.5 dB
(RCA) |
|
|
4V ± 0.5 dB
(Balance) |
|
Frequency Response |
20 Hz ~ 20 KHz
± 0.5 dB |
|
Distortion plus
noise |
-100 dB |
|
S/N Ratio |
90 dB |
|
Dynamic Range |
90 dB |
|
Output Terminal |
a Set of RCA,
a group of BALANCE,
Coaxial,
Optical fiber |
|
Tube used |
12AU7 x 2 |
|
Power Consumption |
20 W |
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
