 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
-
Optimized amplifier circuit, to fully
improve the sound quality
-
Audiophile grade Takman carbon resistors
made in Japan. Realcap PPMF-S series of
high-end coupling capacitors for better
musical perform
- BIAS
meter indication and external BIAS
Adjustment for easy monitoring and
adjustments of power tube working status
- New
selection switch on power amplifier tube for
easy replacement KT series and EL Series
tubes
- New
turn-off memory function
-
High-grade automotive paint technology
providing luxury appearance
-
Complete protection circuit, significantly
reduce risk of damaging power output
transformer
|
|
| |
|

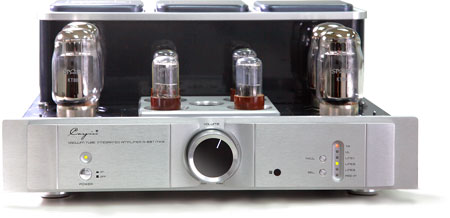

Model
|
A-88T MKII
|
|
SPECIFICATIONS
|
|
Power
Output |
45 W + 45
W ( RMS Ultra-Linear)
25 W + 25 W ( RMS Triode) |
|
Frequency
Response |
10 Hz ~ 40
Hz (-3 dB) |
|
T.H.D |
1% (1KHz) |
|
S/N Ratio |
93 dB |
|
Input
Sensitivity |
300 mV
(Integrated) |
|
Pre-in
Sensitivity |
1000mV |
|
Input
Impedance |
100 KΩ |
|
Output
Impedance |
4Ω , 8Ω |
|
Tube Used |
6SL7 x 2
6SN7 x 2
KT88 x 4 |
|
|
|
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
