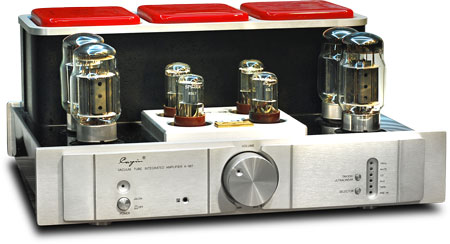

 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
- Four KT88/6550EHs
are used for class AB1 P.P amplification.
- The toroid
power transformer and EI audio transformer are
specially manufactured for CAYIN A-88T by applying
our unique workmanship, which
has low magnetic leakage, wide frequency response
and low impedance.
- Two 6N9P/6SL7s
and two 6N8P/6SN7s are used in the preamplifier.
- Ultralinear
and triode select.
- All-vacuum
tube design, all hand-made.
- Remote
control.
|
|
| |
|
Model
|
A- 88 T
|
|
SPECIFICATIONS
|
|
Power Output |
45 W + 45
W (Ultra
linear) |
|
|
22
W + 22 W (Triode) |
|
Frequency
Response |
18 Hz ~ 35
KHz |
|
T.H.D |
1% (1KHz) |
|
Input Sensitivity |
260mV
|
|
|
600mV
(Pre) |
|
S/N Ratio |
90 dB |
|
Input Impedance |
100 KΩ |
|
Output Impedance |
4Ω, 8Ω, 16Ω |
|
Power Requirement |
AC 230
V±5%, 50 Hz ~ 60 Hz |
|
Power consumption |
280 W |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
