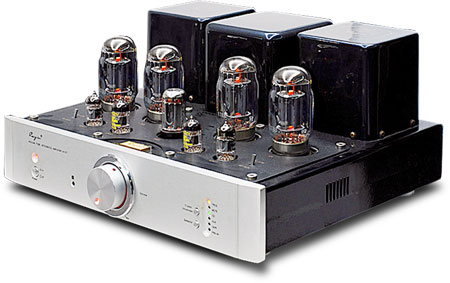

 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
-
All vaccum tube design, handmade, supported scaffolding welding
-
Two high-quality broadband sound EI output transformer
-
Specially manufactured toroidal power transformer
-
High voltage rectifier driven by Russia SOVTEK 5AR4 tube
-
Voltage amplification stage driven by Russian production 12AX7EH and 12AU7EH the two tubes
-
Class AB 1power Amplifier driven by Russian production KT88 tubes
-
Provide triode and ultra-linear selection function.
-
Transistors provide soft, pure and sleek sound, perfect for listening voice, stringed music and other types of music;
-
Ultra-linear operation mode, widen the sound, unrestrained, solid, for large music scenes, dynamic and other types of music.
-
External power tube current adjustment (BIAS ADJUSTMENT) and the current test port
-
Full function remote control
-
Power amplification
-
Start-up delay function (approximately 30 seconds)
-
Japanese ALPS potentiometer High Performance motor
-
Thick silver coating signal line
-
Easy installation of plug-in tube shield
|
|
| |
|
Model
|
A- 70T
|
|
SPECIFICATIONS
|
|
Power Output |
30 W + 30
W
(RMS 8Ω Ultra
linear, KT88) |
|
|
18
W + 18W
(RMS 8Ω Triode, KT88) |
|
|
28 W + 28
W
(RMS 8Ω Ultra
linear, EL34) |
|
|
15
W + 15W
(RMS 8Ω Triode, EL34) |
|
Frequency
Response |
15 Hz ~ 48
KHz ± 3dB |
|
T.H.D |
1% (1KHz) |
|
Input Sensitivity |
380mV
800mV (Pre-in) |
|
S/N Ratio |
90 dB |
|
Input Impedance |
100 KΩ |
|
Output Impedance |
4Ω, 8Ω |
|
Tube Used |
12AX7EH x
2,
12AU7EH x 2,
5AR4 x 1,
EL34/KT88 x 4 |
|
Power Requirement |
AC 230 V±5%,
50 Hz ~ 60 Hz |
|
Power consumption |
280 W |
|
|
|
|
|
|
|
|
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
