 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
-
Four 5881s are used for class AB1 P.P
amplification.
-
The toroid power transformer and EI audio
transformer are specially manufactured for
CAYIN A-60T by applying our unique
workmanship, which has low magnetic leakage,
wide frequency response and low impedance.
-
Two 12AX7EHs and two 12AU7s are used in the
preamplifier.
-
Ultralinear and triode select.
-
All-vacuum tube design, all hand-made.
-
Remote control.
|
|
| |
|

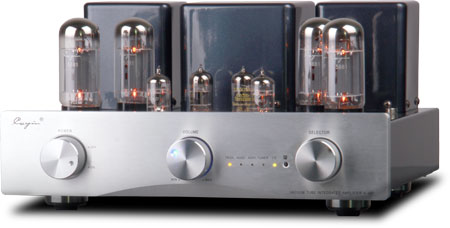

Model
|
A- 60T
|
|
SPECIFICATIONS
|
|
Power Output |
32 W + 32
W (RMS 8Ω Ultra linear) |
|
|
15
W + 15W (RMS 8Ω Triode) |
|
Frequency
Response |
10 Hz ~ 50
KHz ± 1.5dB |
|
T.H.D |
1% (1KHz) |
|
Input Sensitivity |
390mV |
|
S/N Ratio |
89 dB |
|
Input Impedance |
100 KΩ |
|
Output Impedance |
4Ω, 8Ω |
|
Tube Used |
12AX7EH x
2,
12AU7 x 2,
5881 x 4, |
|
Power consumption |
280 W |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
