 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
-
Pure Tube, handmade, supported scaffolding
welding
-
Two high-quality broadband sound EI
output transformer
-
Specially manufactured Toroidal power transformer
-
Pre-Amp driven
by Russian production 12AX7EH and two 12AU7
vacuum tube
-
Class AB1 power amplifier
driven by four EL34 vacuum tubes
-
Provide
triode and ultra-linear selective function.
-
Transistors provide soft, pure and sleek
sound, perfect for listening voice, stringed
music and other types of music
-
Super-linear
mode widen the sound, unrestrained, solid,
for large music scenes, dynamic and other
types of music.
-
External power tube current
adjustment (BIAS ADJUSTMENT) and the current
test port
-
Full function remote control
-
Start-up delay function (approximately 30
seconds)
-
Japanese ALPS potentiometer High
Performance motor
-
Thick silver coating
signal line
-
Easy installation of plug-in
tube shield
|
|
| |
|

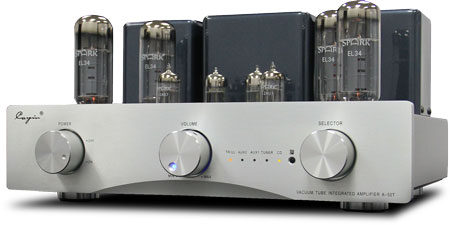

Model
|
A- 50T
|
|
SPECIFICATIONS
|
|
Power Output |
35 W + 35
W (Ultra
linear) |
|
|
16
W + 16W (Triode) |
|
Frequency
Response |
10 Hz ~ 50
KHz (-1.5dB) |
|
T.H.D |
1% (1KHz) |
|
Input Sensitivity |
370mV
|
|
S/N Ratio |
89 dB |
|
Input Impedance |
100 KΩ |
|
Output Impedance |
4Ω, 8Ω |
|
Power Requirement |
AC 230 V±5%,
50 Hz ~ 60 Hz |
|
Power consumption |
280 W |
|
Dimension |
350 x 300x
185 mm |
|
Weight |
13 Kg |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
