 Vacuum
Tube Amplifier |
|
|
|
| |
|
FEATURE:
-
All tube, handmade, supported scaffolding
welding
-
Two high-quality broadband sound EI output
transformer
-
Specially manufactured toroidal power
transformer
-
The U.S. Multi-Cap high quality capacitor
for the coupling circuit
-
high voltage rectifier driven by two Russian
SOVTEK 5AR4 tube
-
Power amplification driven by Russian
production 12AX7EH and 12AU7EH
-
Class A power Amplifier driven by 300B x 4
vacuum tube
-
Standard mode, widen the sound,
unrestrained, solid, for large music scenes,
dynamic and other types of music
-
soft mode,soft, pure and sleek sound,
perfect for listening voice, stringed music
and other types of music
-
External 300B power tube current adjustment
(BIAS ADJUSTMENT), monitoring (BIAS TEST
POINT) and Hum adjustment (HUM BALANCE)
function
-
Full function infrared remote control
-
Start-up delay function (approximately 30
seconds)
-
Japanese ALPS potentiometer High Performance
motor
-
Thick silver coating signal line
-
Easy installation of plug-in tube shield
|
|
| |
|

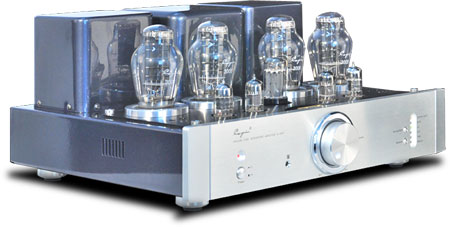

Model
|
A-300P
|
|
SPECIFICATIONS
|
|
Power Output |
20 W + 20
W (RMS 8Ω ) |
|
Frequency
Response |
10 Hz ~ 55
KHz ± -1.5dB |
|
T.H.D |
1% (1KHz) |
|
Input Sensitivity |
580mV
(Integrated
900mV (Power) |
|
S/N Ratio |
91 dB |
|
Input Impedance |
100 KΩ |
|
Output Impedance |
4Ω, 8Ω,
16Ω |
|
Tube Used |
5AR4(Sovtek) x
1,
12AX7EH x 2,
12AU7EH x 2,
300 B x
4 |
|
Input
Terminal |
Three RCA,
A Group of PRE-IN |
|
Power Requirement |
AC 230 V±5%,
50 Hz ~ 60 Hz |
|
Power consumption |
280 W |
|
|
|
|
|
|
|
|
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
