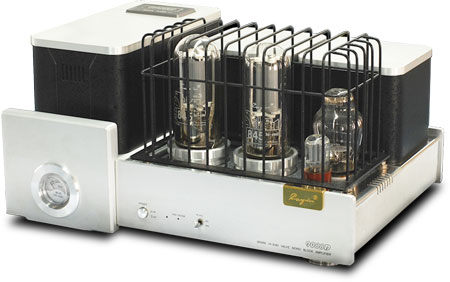

 MONO
BLOCK |
|
|
|
| |
|
FEATURE:
- The
machine has solid transient state, good
analysis, precise focusing, mellow tone,
good control
- Pure
tube handmade, welding machine using
scaffolding
-
Specially manufactured EI transformer for
high-quality broadband sound output
- Specially manufactured toroidal
power transformer
- Preamp
voltage amplification circuit driven by 6SL7
- Pushing
stage driven by 300B
- Class
AB 1 power Amplifier driven by 845 x 2
- Start-up delay function (approximately 30
seconds)
- Thick
silver coating signal line
|
|
| |
|
Model
|
9088D |
|
SPECIFICATIONS
|
|
Power Output |
60 W (RMS) |
|
Frequency Response |
20 Hz ~ 25 KHz |
|
T.H.D |
2% |
|
S/N Ratio |
80 dB |
|
Input Sensitivity |
1000 mV
1300 mV |
|
Input Impedance |
100 KΩ |
|
Output Impedance |
4 Ω, 8 Ω,
16 Ω |
|
Tube Used |
6SL7 x 1
300B x 1
845 x 2 |
|
Power Consumption |
245 W |
|
|
|
|
|
|
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
