 MONO
BLOCK |
|
|
|
| |
|
FEATURE:
- The
machine has good transient state, good
analysis , precise focusing, mellow tone,
good control
- Pure
tube handmade, welding machine using
scaffolding
-
Specially manufactured EI transformer for
high-quality broadband sound output
- Use a
specially crafted drive transformer
-
Specially manufactured for the toroidal
power transformer
- Preamp
amplification driven by 6N9P/6SL7 creating
SRPP circuitry
- Pushing
stage driven by FULL MUSIC direct thermal
300B production in Tianjin
- Class A
Power amplifier stage driven by modified 805
direct thermal tubes.
-
External anode High-voltage terminal for
easy replacement of the other 805 series
tube
-
Start-up delay function (approximately 30
seconds)
- Thick
silver coating signal line
|
|
| |
|

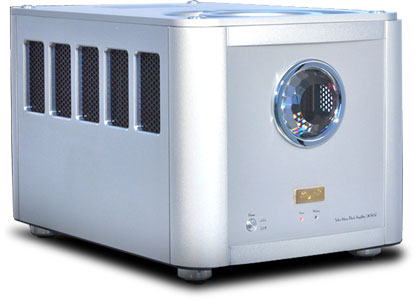

Model
|
9085 D |
|
SPECIFICATIONS
|
|
Power Output |
40W (RMS 8Ω) |
|
Frequency Response |
20 Hz ~ 22 KHz |
|
T.H.D |
2%(1 KHz) |
|
S/N Ratio |
80 dB |
|
Input Sensitivity |
750 mV |
|
Input Impedance |
100 KΩ
(RCA) |
|
Output Impedance |
4 Ω, 8 Ω,
16Ω |
|
Tube Used |
6N9P/6SL7 x 1,
300B x 1
805 x 1 |
|
Power Consumption |
230 W |
|
|
|
|
|
|
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
