 MONO
BLOCK |
|
|
|
| |
|
FEATURE:
- The
machine has solid transient state, good
analysis, precise focusing, mellow tone,
good control
- Pure
tube handmade, welding machine using
scaffolding
-
Specially manufactured EI transformer for
high-quality broadband sound output
-
Specially manufactured toroidal power
transformer
- Pushing
stage driven by 300B
- Class A
power amplifier stage driven by 845 x 2
-
Start-up delay function (approximately 30
seconds)
- Thick
silver coating signal line
|
|
| |
|
Model
|

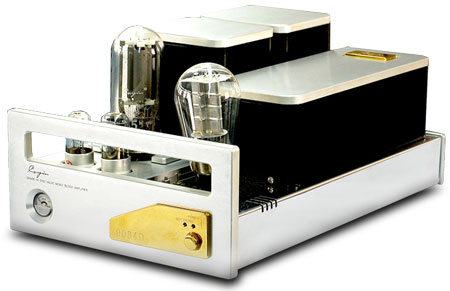

9084 D |
|
SPECIFICATIONS
|
|
Power Output |
28W (RMS 8Ω) |
|
Frequency Response |
18 Hz ~ 30 KHz
- 1.5dB |
|
T.H.D |
2% |
|
S/N Ratio |
85 dB |
|
Input Sensitivity |
1000 mV |
|
Input Impedance |
100 KΩ
(RCA) |
|
Output Impedance |
4 Ω, 8 Ω |
|
Tube Used |
6N9P/6SL7 x 1,
6N8P/6SN7 x 1
300B x 1
845 x 1 |
|
Power Consumption |
160 W |
|
|
|
|
|
|
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
