 MONO
BLOCK |
|
|
|
| |
|
FEATURE:
- Pure
tube, handmade, supported scaffold welding
- High
quality broadband sound EI output
transformer
-
specially manufactured toroidal power transformer
- Voltage
amplification driven by vacuum tube 12AX7EH, 12AU7EH and 6CG7
respectively.
- Class
AB1 Power amplifier driven by four Russian production 6550EH vacuum tube
- U.S. Multicap high coupling capacitor
- Triode and
Ultra-Linear selective function.
- Transistors
provide soft, pure and sleek sound, perfect for
listening voice, stringed music and other types of music.
- Ultra-Linear
mode, the widen the sound, unrestrained,
solid, suitable for large music scene,
dynamic and other type of music
- External power tube current adjustment (BIAS ADJUSTMENT)
with monitoring (BIAS MONITOR) function
- Easy installation of plug-in tube shield
|
|
| |
|

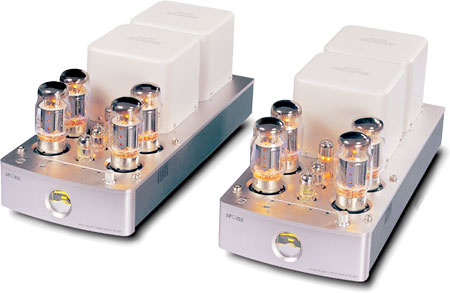

Model
|
880 MB |
|
SPECIFICATIONS
|
|
Power Output |
75W (RMS 8Ω,
Ultra-Linear)
44W (RMS 8Ω, Triode) |
|
Frequency Response |
10 Hz ~ 100 KHz ± 1dB |
|
T.H.D |
1% (1 KHz) |
|
S/N Ratio |
95 dB |
|
Input Sensitivity |
RCA: 750mA
BALANCE: 1.5mV |
|
Input Impedance |
100 KΩ |
|
Output Impedance |
4 Ω, 8 Ω,
16 Ω |
|
Tube Used |
12AX7EH x 1,
12AU7EH/6CG7 x 2
6550EH x 4 |
|
Input Terminal |
a group of BALANCE, a set of RCA |
|
Power Consumption |
245 W |
|
|
|
|
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
| |
|
|
