DVD Player With TFT Monitor |
|
|
 |
| |
FEATURE
| ҹ |
Touch Screen |
|
ҹ |
MPEG 4 |
|
ҹ |
SD |
| ҹ |
MPEG 3 Digital Audio |
|
ҹ |
Compact Disc Audio |
|
ҹ |
ESP Anti-Shock |
| ҹ |
Video CD |
|
ҹ |
Multimedia Card |
|
ҹ |
16:9 High Definition |
| ҹ |
DVD Video |
|
ҹ |
USB |
|
ҹ |
TV Tuner |
| ҹ |
Bluetooth |
|
|
|
|
|
|
|
| |
|
Feature
- Auto Insert Shock Absorbing
loader
- Electronic Tuning PLL Radio
System
- 30 Memory Preset Station
- Manual / Auto Seek Radio
Station
- Automatic Memory Preset
Store and Preset Scan function
- 16:9 Wide View Angle Color
TFT Display
- Real Time Clock Display
- Electronic Volume Control (Vol/Bass/Treble/Balance/Fader)
- Preset Equalizer Control
(Pop /Classic /Rock Flat/Jazz)
- 4 Channel High Power Output
- Rear Camera Video Input
- USB /SD Card Support
- Front Audio /Video Input
- Rear RCA Audio / Video
Input / Output
- Full Function Remote
Control
- Antennal Control
- 2 Din Mounting Chassis Size
- Built in Analog TV
- Built in Bluetooth function
|
| |
|

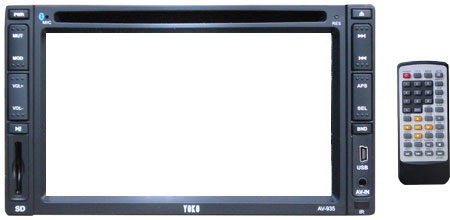

Model |
AV 935 |
|
SPECIFICATIONS
|
|
Power Supply Management |
14.4V DC |
|
Speaker Load Impedance |
4 Ω |
|
Max. Power Output |
40 W x 4CH |
|
Tone Controls |
8 dB (Bass 100 Hz, Treble 10
KHz) |
|
|
|
|
DVD
Section |
|
Disc Played |
DVD, MPEG4, DIVX, VCD1.0/2.0,
MP3, WMA, CD, CD-R/RW, Picture CD |
|
Video System |
Auto / PAL/ NTSC |
Mounting Angle
|
0~30 degree
|
|
Video
Section |
|
Video System |
4:3 Letter Box, 4:3 Pan scan,
16:9 Wide Screen |
|
Video Output Level |
1.0 Vp-p / 75 Ω |
Horizontal Resolution
|
500
|
Audio Section |
|
Max. Output level |
2 Vrms (±3dB) |
|
Frequency Response |
20 Hz ~ 20 KHz |
|
Signal To Noise Ratio |
85 dB |
|
Separation |
80 dB |
|
|
|
|
FM Tuner
Section |
|
Tuning Range |
87.5 ~ 108.0 MHz |
|
IF Range |
10.7 MHz |
|
Usable Sensitivity (-30 dB) |
12 dBµ |
|
Signal To Noise Ratio |
60 dB |
|
Stereo Separation |
30 dB (1 KHz) |
|
Frequency Response |
30 ~ 15 KHz |
|
|
|
|
AM Tuner Section |
|
Frequency Range |
522 ~ 1629 KHz |
|
IF Range |
450 KHz |
|
Usable Sensitivity (-20 dB) |
32 dBµ |
|
| |
|
| |
|
|
