 Crossover |
|
|
 |
|
Multi Channel

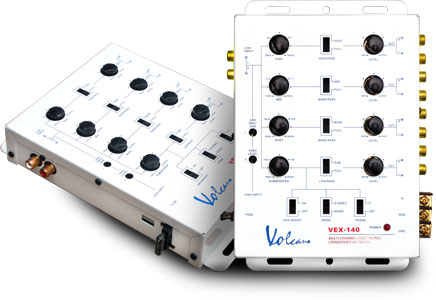

Electronic Crossover Network |
| |
|
FEATURE:
|
| |
|
Model |
VEX 140 |
|
SPECIFICATIONS
|
|
Input Current
|
0.3 Amp Max |
| Output Voltage Level |
10.3 Volts max |
|
Power Supply |
8~16 Volts DC negative ground |
| Distortion |
0.01% THD at 1 KHz |
|
S/N Ratio |
100 dB |
| Crossover Slope Rate |
12 dB / Octave Butterwoth |
|
Crossover
Frequencies |
| HIGH |
2 KHz ~ 10 KHz |
|
MID |
1 KHz ~ 5 KHz |
| BASS |
40 Hz ~ 300 Hz |
|
SUB LOW PASS |
40 Hz ~ 200 Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
