 PRE-Amplifier |
|
|
 |
| 7 BAND PARAMETRIC
EQUALIZER WITH SUBWOOFER OUTPUT |
| |
|
FEATURE
- Active gain Equalizer with
adjustable input sensitivity.
- Master volume control with
up to 7 volts RMS of output.
- Individual left and right
sensitivity controls.
- Four band parametric
equalizer with 12 dB boost/cut.
- Specific band width for
each band plus high frequency shelving.
- On-board 30 V bipolar
switching power supply.
- Subwoofer level control.
- Subwoofer frequency
adjustable.
- Gold-plated RCA
input/output connectors
- Input AUX/MAIN select
switch.
- Night illumination design
|
| |
|

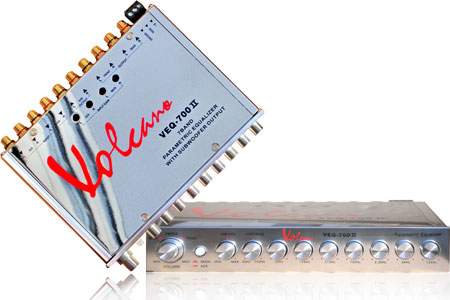

Model |
VEQ 700 II |
|
SPECIFICATIONS
|
| Power Supply |
11~15 V DC NEG.Ground |
| Max. Output Voltage |
7 V RMS |
| Pre graphic frequency |
50 Hz, 125 Hz, 315 Hz, 750 Hz,
2.2 KHz, 6 KHz, 12 KHz |
| Equalization Range |
± 12 dB |
| Subwoofer Frequency |
30 ~ 300 Hz |
| Input Impedance |
10 K Ω |
| S/N Ratio |
90 dB |
| T.H.D |
0.03% |
| Channel Separation |
70 dB |
| Frequency Response |
15 Hz ~ 30 KHz (±1dB) |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
